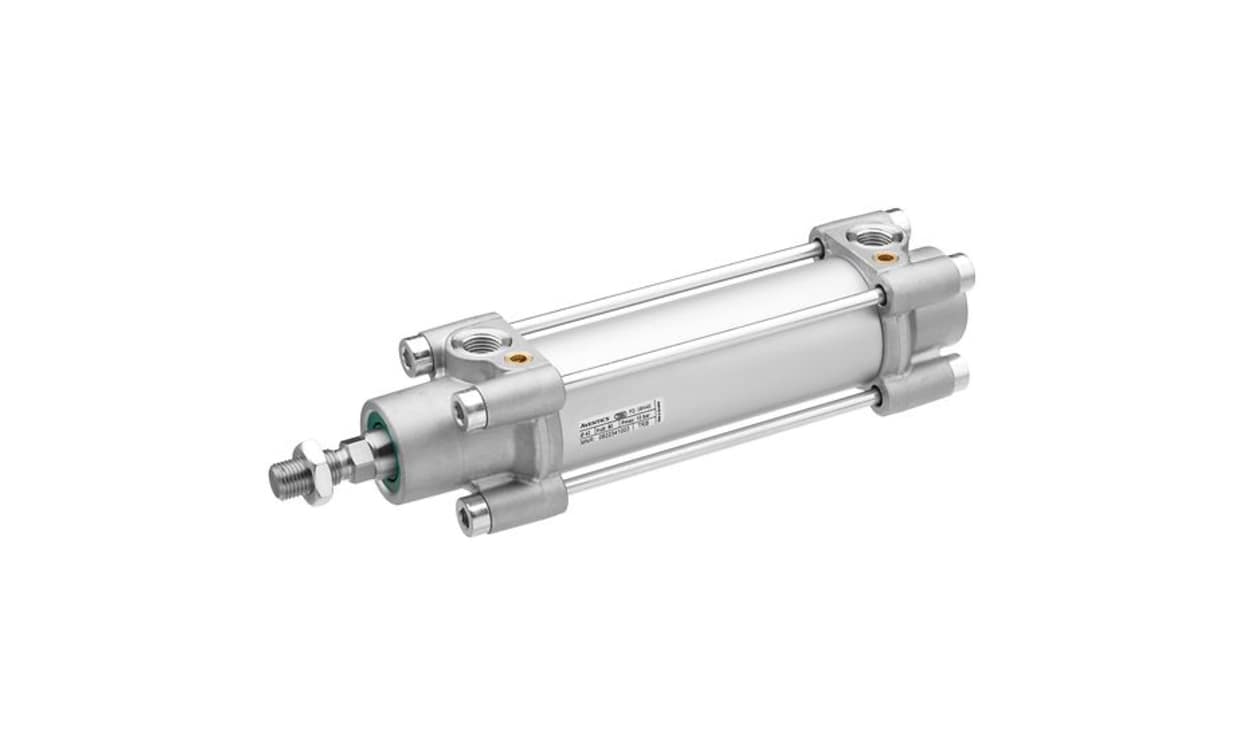

AVENTICS 0822342009 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 320 mm Stroke, TRB Series
The 0822342009 from AVENTICS is a 50 mm bore, 320 mm stroke piston rod cylinder in the TRB series, working double-acting. Specified for up to 10 bar, the 0822342009 carries ISO 15552 conformity and pneumatic cushioning.
- Bore 50 mm, stroke 320 mm, double-acting
- G 1/4 air connections
- Cushioning type: pneumatic
- Piston rod thread: male
- Conforms to ISO 15552
- TRB series, double-acting
- Maximum operating pressure: 10 bar
- Detailed Description
- Specifications
- Downloads
Superior environmental resistance to temperature fluctuations
Versatile stroke lengths to cater to a wide range of machinery
| Brand | AVENTICS |
| Manufacturer Series | TRB |
| Model Number P | 0822342009 |
| Action | Double |
| Bore | 50 mm (1.97 in) |
| Stroke | 320 mm (12.6 in) |
| Pneumatic Connection | G 1/4 |
| Port Connection | G 1/4 |
| Cushioning Type | Pneumatic Cushioning |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Male |
| ISO Standard | 15552 |
