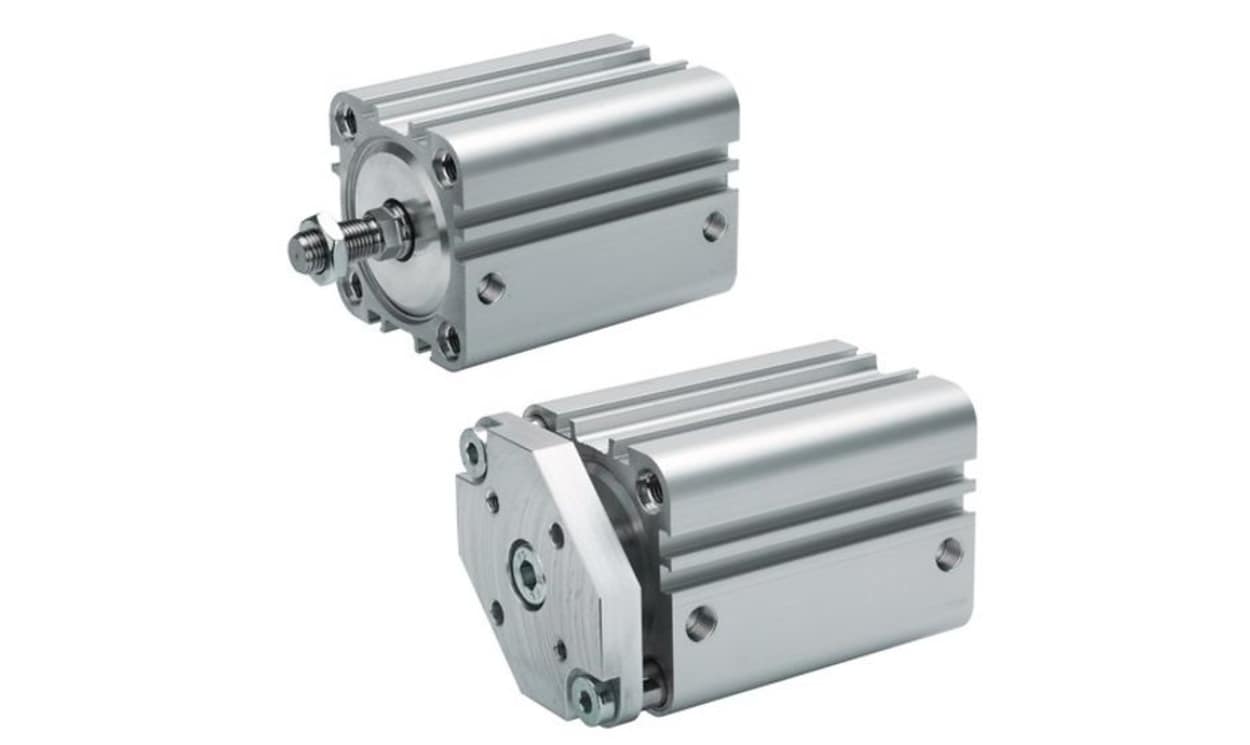

AVENTICS 0822391007 | Pneumatic Compact Cylinder | 20 mm Bore, 50 mm Stroke, KPZ Series

Name: AVENTICS 0822391007 | Pneumatic Compact Cylinder | 20 mm Bore, 50 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822391007
Availability: InStock

Part Number : 0822391007

AVENTICS part 0822391007 is a KPZ series compact cylinder sized at 20 mm bore with 50 mm of stroke and double-acting operation. The 0822391007 operates from -20 °C to +80 °C and uses M5 connections, with a female piston rod thread.

Manufacturer series: KPZ
Pressure limit 10 bar
Operating temperature -20 °C to +80 °C
Port size M5
Cushioning type: elastic
Piston rod thread: female

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Compact Cylinder is designed for various industrial applications, offering exceptional versatility and reliability. Built based on the widely acknowledged NFE 49 004 standard, this cylinder accommodates a multitude of configurations to meet your specific operational requirements. With its double-acting functional principle, the KPZ delivers consistent performance across diverse environmental conditions, including temperatures ranging from -20 °C to 80 °C. The cylinder boasts advanced elastic cushioning technology, ensuring optimal operation while minimising wear and tear over time.

Constructed with stainless steel for enhanced durability
Aluminium body components offer lightweight and robust structure
ATEX compliance offers safety for use in potentially explosive atmospheres
Extensive variant options available through the configurator for customised solutions

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822391007
Stroke	50mm
Action	Double
Bore	20mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822391007 | Pneumatic Compact Cylinder | 20 mm Bore, 50 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822391007 Datasheet - 0822391007 A700000012564164
