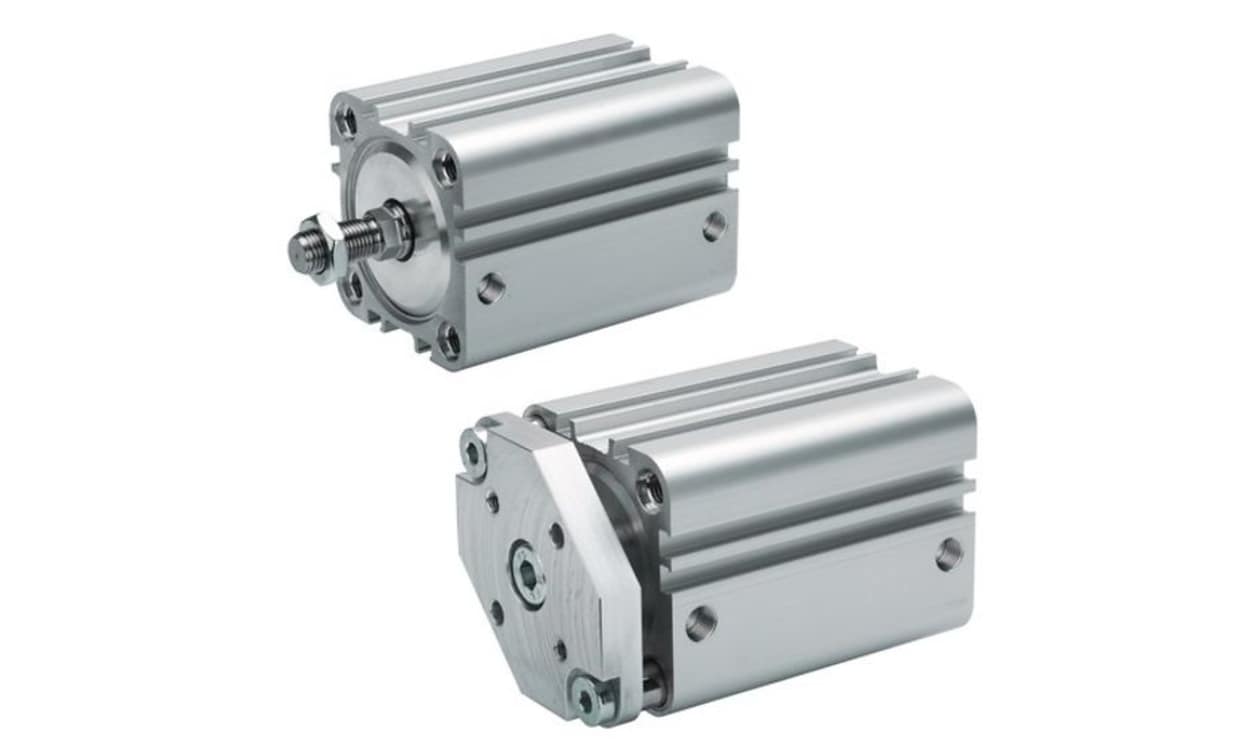

AVENTICS 0822391606 | Pneumatic Compact Cylinder | 20 mm Bore, 40 mm Stroke, KPZ Series

Name: AVENTICS 0822391606 | Pneumatic Compact Cylinder | 20 mm Bore, 40 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822391606
Availability: InStock

Part Number : 0822391606

Where a 40 mm stroke is needed at 20 mm bore, the AVENTICS 0822391606 double-acting KPZ compact cylinder fits the requirement. M5 connections, elastic cushioning and a female piston rod thread complete the 0822391606 specification.

Bore 20 mm, stroke 40 mm, double-acting
M5 air connections
Elastic cushioning
Female piston rod thread
Manufacturer series: KPZ
Pressure limit 10 bar
Operating temperature -20 °C to +80 °C

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics KPZ compact cylinder is engineered for efficiency and versatility, making it an ideal component for various industrial applications. Designed with the well-established NFE 49 004 standards in mind, this cylinder offers a compact build without sacrificing performance. Its double-acting functional principle ensures reliable operation, while the elastic cushioning provides enhanced safety and minimises wear. With a robust construction that utilises materials like stainless steel and aluminium, the KPZ series stands ready to tackle demanding environments. Whether in a production line or automation system, this compact cylinder adapts seamlessly, delivering exceptional results under various conditions. The option of ATEX compliance caters to environments requiring stringent safety standards, ensuring the KPZ remains a reliable choice for forward-thinking businesses seeking to optimise their pneumatic systems.

Compact design allows efficient use of space in various applications
Double-acting operation provides consistent and reliable performance
Elastic cushioning enhances safety while reducing wear and tear
Wide range of piston sizes caters to varied industrial needs
Robust materials ensure durability and long service life under tough conditions
Optional ATEX compliance helps meet safety regulations in hazardous environments
Easy integration with existing systems due to standardised dimensions
Magnetic piston functionality facilitates sensor compatibility for enhanced control

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822391606
Bore	20mm
Action	Double
Stroke	40mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822391606 | Pneumatic Compact Cylinder | 20 mm Bore, 40 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822391606 Datasheet - 0822391606 A700000012564216
