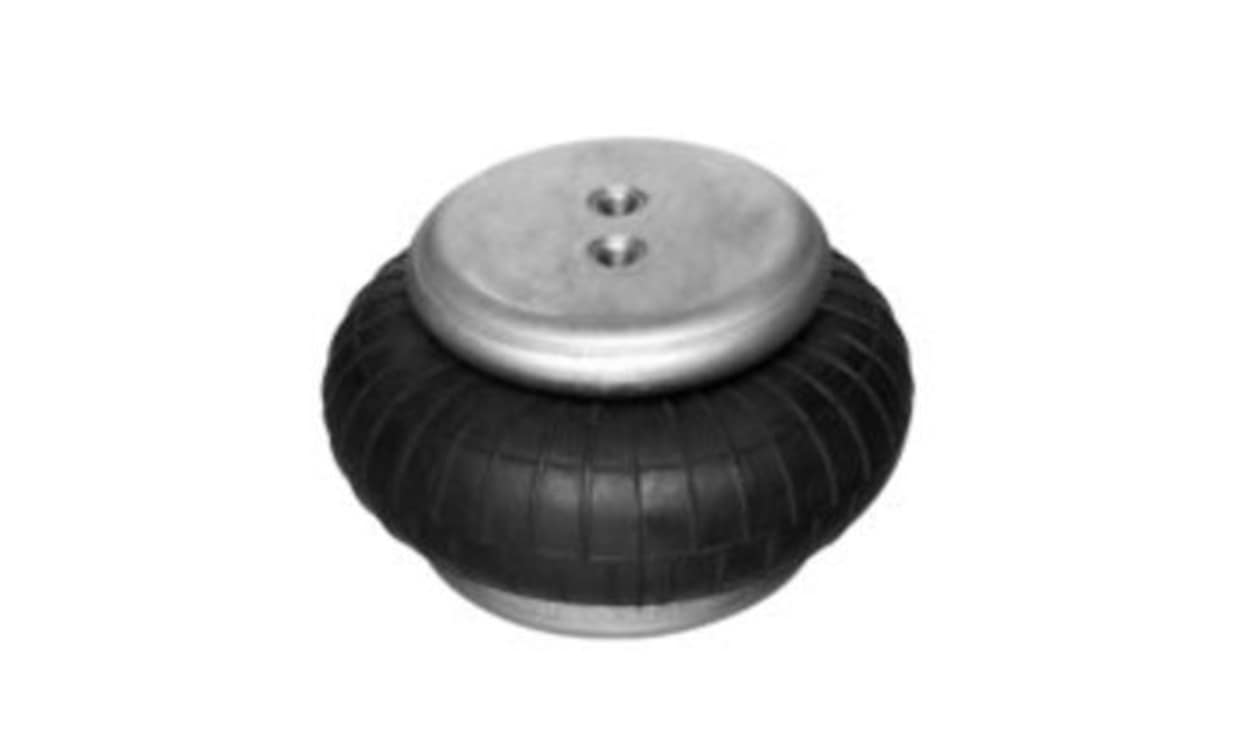

AVENTICS 0822419003 | BCP Compact Air Bellows | 141 mm Dia, 75 mm Stroke, G 3/4
Offering a 75 mm stroke, this BCP compact air bellows (AVENTICS 0822419003) has a 141 mm nominal diameter and fits an installation height of 50 to 125 mm. It is rated to 8 bar maximum and weighs 2 kg.
- Stroke: 75 mm
- Nominal diameter: 141 mm
- Installation height: 50 to 125 mm
- Port connection: G 3/4
- Maximum operating pressure: 8 bar
- Weight: 2 kg
- Detailed Description
- Specifications
- Downloads
Optimised for use in industrial settings ensuring high operational standards
Designed to support a wide range of ambient temperatures for versatile application
Specifications allow easy integration into existing compressed air systems
| Brand | AVENTICS |
| Manufacturer Series | BCP |
| Nominal Diameter | 141 mm (5.55 in) |
| Stroke | 75 mm (2.95 in) |
| Installation Height Minimum | 50 mm (1.97 in) |
| Installation Height Maximum | 125 mm (4.92 in) |
| Port Connection | G 3/4 |
| Maximum Operating Pressure | 8 bar (116 psi) |
| Weight | 2 kg (4.41 lb) |
