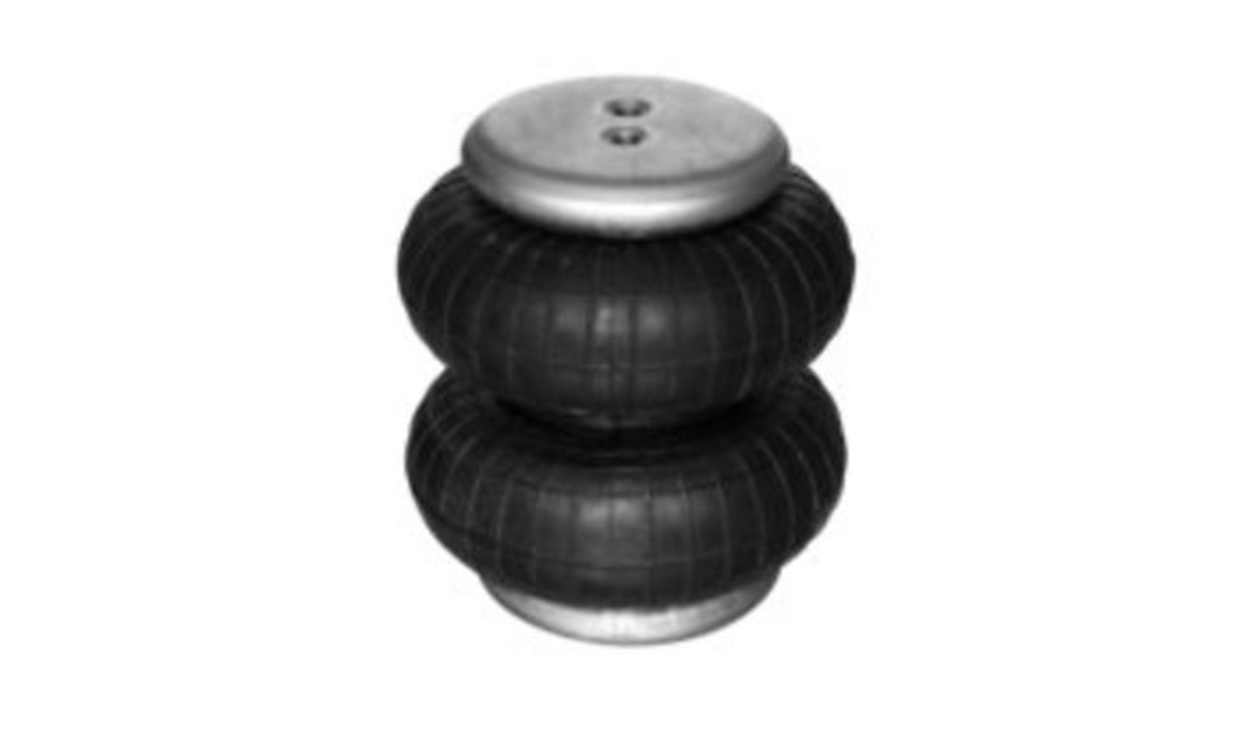

AVENTICS 0822419040 | BCP Compact Air Bellows | 90 mm Dia, 95 mm Stroke, G 1/8
With a nominal diameter of 90 mm, the BCP series AVENTICS 0822419040 compact air bellows provides a 95 mm stroke. The listed installation height is 70 to 165 mm, and the unit weighs 1.3 kg.
- Stroke: 95 mm
- Nominal diameter: 90 mm
- Installation height: 70 to 165 mm
- Port connection: G 1/8
- Maximum operating pressure: 8 bar
- Weight: 1.3 kg
- Detailed Description
- Specifications
- Downloads
Optimised for use in industrial settings ensuring high operational standards
Designed to support a wide range of ambient temperatures for versatile application
Specifications allow easy integration into existing compressed air systems
| Brand | AVENTICS |
| Manufacturer Series | BCP |
| Nominal Diameter | 90 mm (3.54 in) |
| Stroke | 95 mm (3.74 in) |
| Installation Height Minimum | 70 mm (2.76 in) |
| Installation Height Maximum | 165 mm (6.50 in) |
| Port Connection | G 1/8 |
| Maximum Operating Pressure | 8 bar (116 psi) |
| Weight | 1.3 kg (2.87 lb) |
