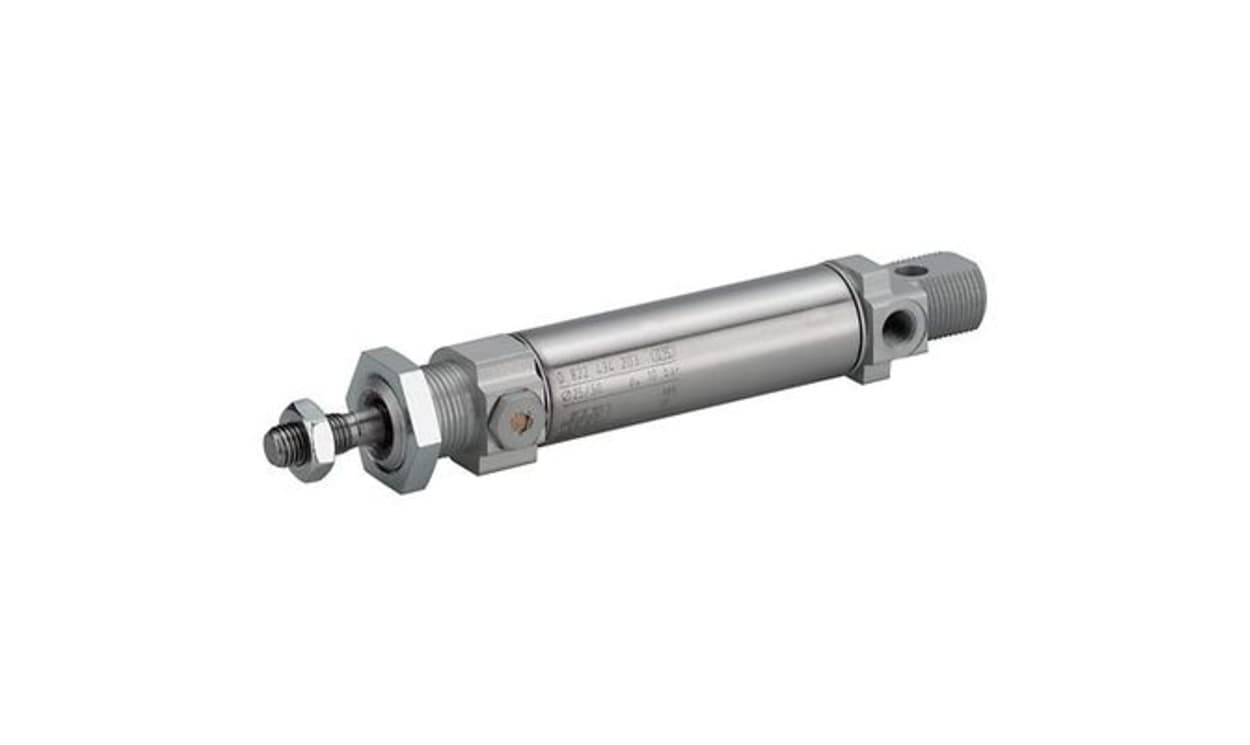

AVENTICS 0822431201 | MNI Single Acting Roundline Cylinder | 10 mm Bore, 10 mm Stroke, ISO 6432

Name: AVENTICS 0822431201 | MNI Single Acting Roundline Cylinder | 10 mm Bore, 10 mm Stroke, ISO 6432
Brand: Aventics
SKU: 0822431201
Availability: InStock

Part Number : 0822431201

A 10 mm stroke on a 10 mm bore sets the AVENTICS 0822431201 apart within the MNI roundline cylinder line as a single-acting model. A male rod thread and M5 porting complete this 10 mm stroke build.

Listed standard: ISO 6432 (0822431201)
MNI range part 0822431201
0822431201: maximum operating pressure 10 bar
Temperature range -25 °C to +80 °C (10 mm bore)
Cushioning type: elastic (0822431201)
Male-threaded rod for the 10 mm / 10 mm version

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Series MNI Mini Cylinder is an exceptional component designed for general machine construction, encapsulating durability and efficiency in a compact size. Engineered with precision, this cylinder adheres to ISO 6432 standards, making it an ideal choice for various industrial applications. Its robust structure ensures a long service life, while the single-acting functional principle promotes effective retraction without the need for pressure. The MNI Mini Cylinder stands out with features like elastic cushioning and a lightweight design, enabling seamless integration into your machinery. With its ability to operate in diverse environmental conditions, this product sets a benchmark for reliability and performance in the market.

Compact design allows for easy installation in tight spaces
Ensures high operational reliability with minimal maintenance requirements
Single-acting mechanism enhances efficiency by simplifying the retraction process
Versatile temperature range offers functionality in varied operational environments
Constructed from premium materials to ensure resilience and longevity
Utilises elastic cushioning for smooth operation and reduced wear
Designed specifically to meet the requirements of industrial standards

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822431201
Stroke	10mm
Bore	10mm
Action	Single
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822431201 | MNI Single Acting Roundline Cylinder | 10 mm Bore, 10 mm Stroke, ISO 6432

DOWNLOAD CATALOG

0822431201 Datasheet - 0822431201 A700000012567729

0822431201 Datasheet - 0822431201 A700000012572231
