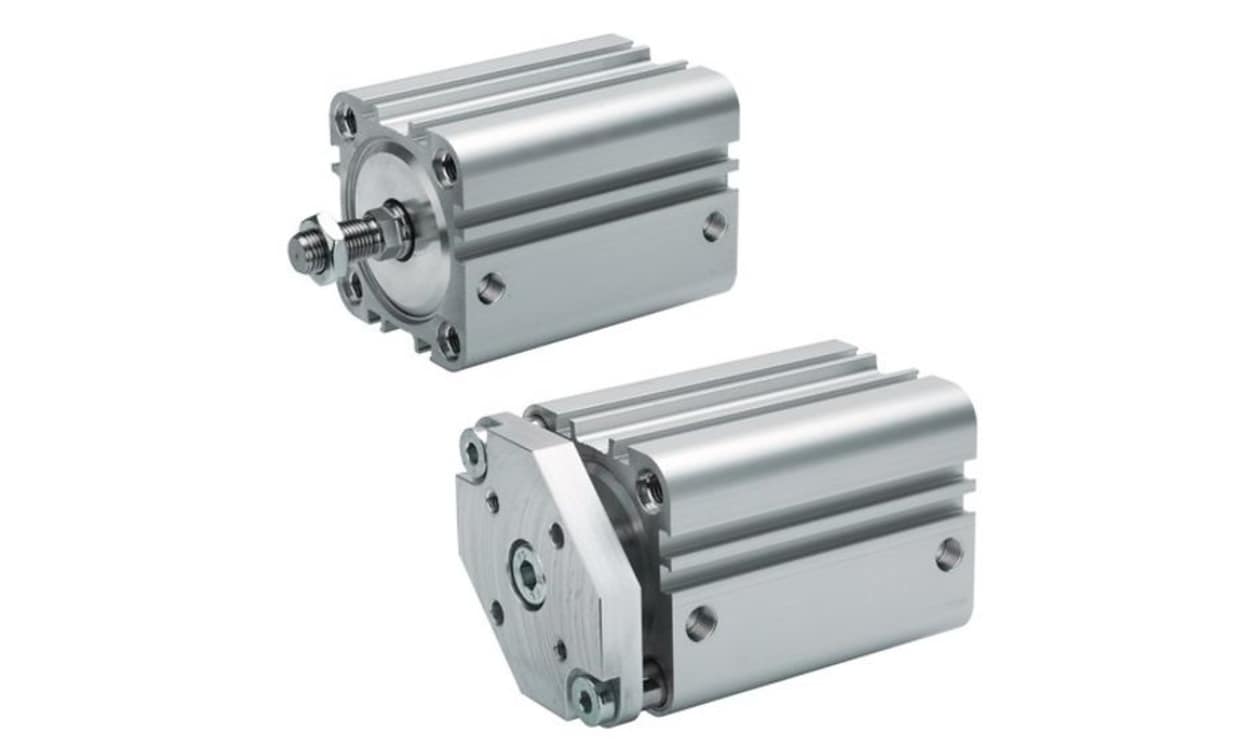

AVENTICS 0822498003 | KPZ Single-Acting Compact Cylinder | 100 mm Bore, 20 mm Stroke, Female Rod Thread
With a 100 mm bore and 20 mm stroke, AVENTICS 0822498003 is a single-acting KPZ-series compact cylinder. Rated for up to 10 bar, the 100/20 mm unit runs from -20 °C to +80 °C and takes G 1/8 fittings with elastic cushioning.
- Bore 100 mm, stroke 20 mm
- Action: single-acting
- G 1/8 air ports
- Rod thread gender: female
- Cushioning: elastic
- Up to 10 bar, -20 °C to +80 °C
- Detailed Description
- Specifications
- Downloads
Aluminium body components offer lightweight and robust structure
Magnetic piston facilitates effective feedback for position detection
| Brand | AVENTICS |
| Manufacturer Series | KPZ |
| Model Number P | 0822498003 |
| Action | Single |
| Bore | 100 mm (3.94 in) |
| Stroke | 20 mm (0.787 in) |
| Pneumatic Connection | G 1/8 |
| Port Connection | G 1/8 |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Female |
