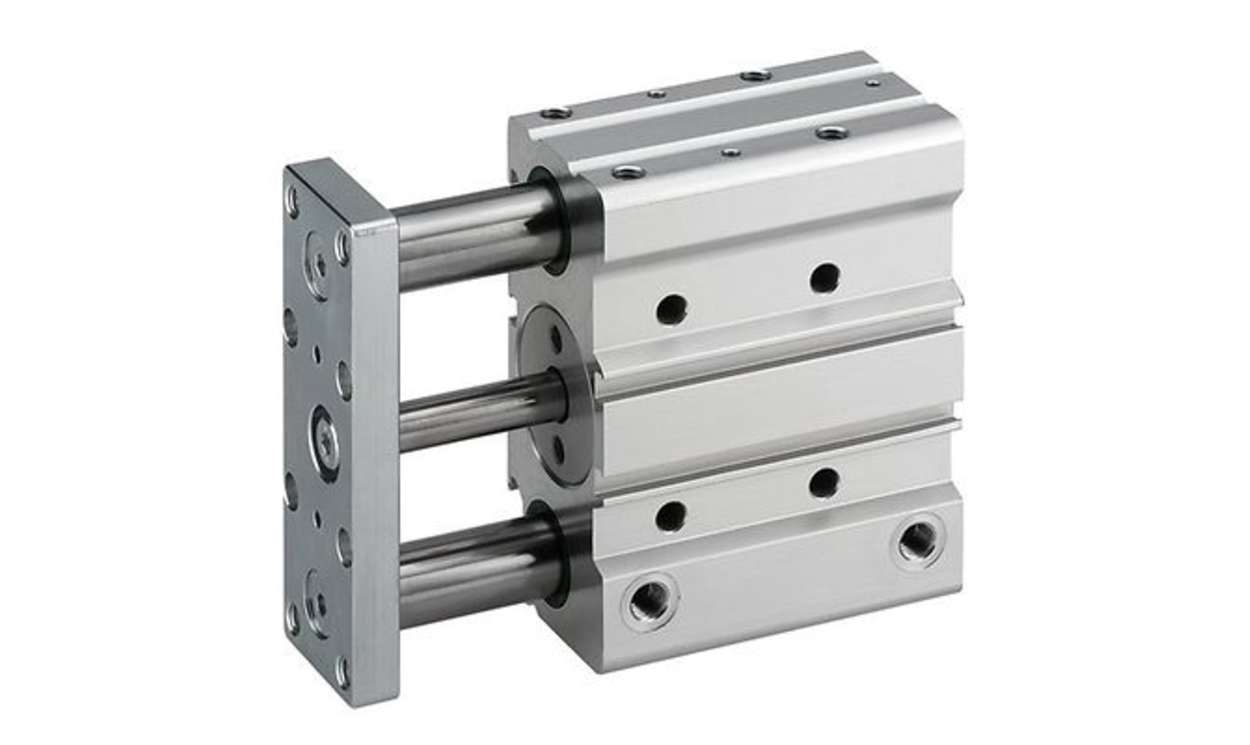

AVENTICS R402000298 | GPC Double-Acting Guided Cylinder | 10 mm Bore, 30 mm Stroke
10 mm bore and 30 mm stroke: AVENTICS R402000298 is a double-acting guided cylinder from the GPC series. On R402000298 you get M5 ports, an 8 bar pressure rating and elastic cushioning, with a -10 °C to +70 °C temperature range.
- Bore 10 mm, stroke 30 mm
- Action: double-acting
- Ports: M5
- Cushioning: elastic
- Piston speed: 500 mm/s
- Max pressure: 8 bar, -10 °C to +70 °C
- Detailed Description
- Specifications
- Downloads
Robust construction utilising aluminium and stainless steel for durability
Double acting functional principle allows for efficient operation
| Brand | AVENTICS |
| Manufacturer Series | GPC |
| Model Number P | R402000298 |
| Action | Double |
| Bore | 10 mm (0.394 in) |
| Stroke | 30 mm (1.18 in) |
| Pneumatic Connection | M5 |
| Port Connection | M5 |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 8 bar (116 psi) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Piston Speed | 500 mm/s |
