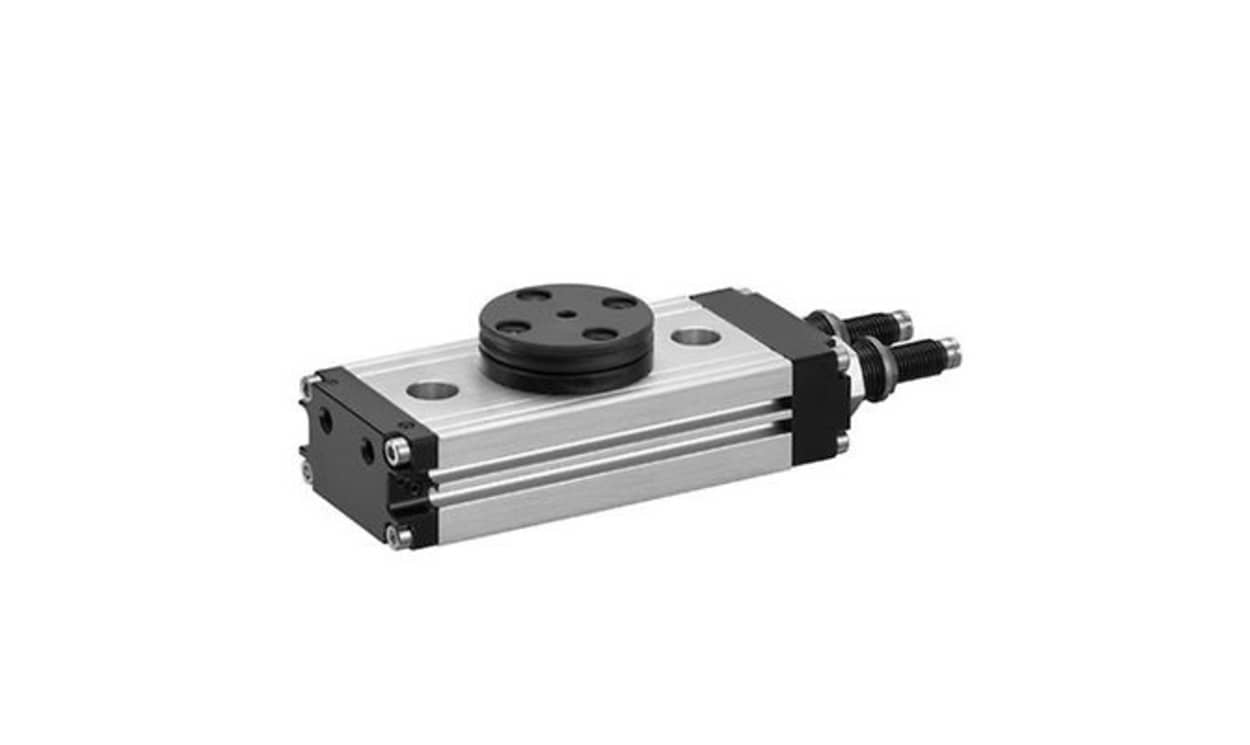

AVENTICS R412000361 RCM Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 12mm Bore

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R412000361 RCM Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 12mm Bore

Name: AVENTICS R412000361 RCM Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 12mm Bore
Brand: Aventics
SKU: R412000361
Availability: OutOfStock

Part Number : R412000361

Availability: Sold out

Detailed Description
Specifications

The Aventics Rotary Compact Module comes with a magnetic piston. It features double pistons with rack mechanism. It is Easy2Combine capable. It operates between the ambient temperature range of 5°C to 60 °C. It is suitable for working using compressed air medium. It comes with elastic cushioning.

Aluminium housing
Cap and base made of anodized aluminium
Seal made of Acrylonitrile butadiene rubber

Brand	AVENTICS
Rotary Angle	90°
Action	Double
Bore	12mm
Manufacturer Series	RCM
Maximum Operating Pressure	8 bar
Cushioning Type	Elastic
Port Connection	M5
Size Type	Compact
Series	RCM
