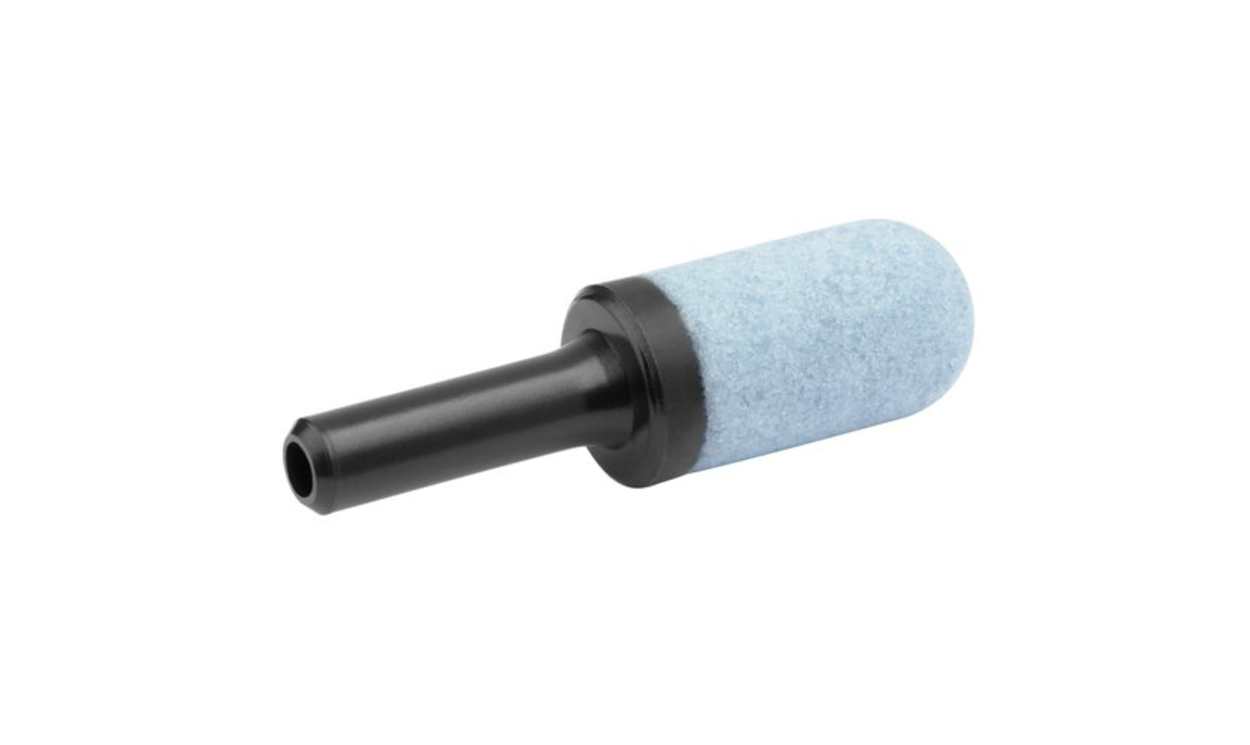

AVENTICS R412000593 | SI1 PE Pneumatic Silencer | 10 mm Tube Inlet, 10 bar
AVENTICS R412000593 is a PE pneumatic silencer from the SI1 series with a 10 mm tube inlet connection. R412000593 accepts a maximum input pressure of 10 bar and is listed for -25 °C to +80 °C. R412000593 is listed by AVENTICS as a silencer type in the SI1 series, with a tube inlet connection.
- Material: PE
- Inlet: tube, 10 mm
- Max input pressure: 10 bar
- Temperature: -25 °C to +80 °C
- Series: SI1
- Detailed Description
- Specifications
- Downloads
Rexroth Push-in silencer Series Sl1
10mm Stem fitting
Working pressure 0 → 10 bar
Ambient temperature -25 → 80 °C
| Brand | AVENTICS |
| Series | SI1 |
| Type | Silencer |
| Inlet Connection Type | Tube |
| Material | PE |
| Tube Inlet Connection | 10 mm (0.394 in) |
| Maximum Input Pressure | 10 bar (145 psi) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +80 °C (176 °F) |
