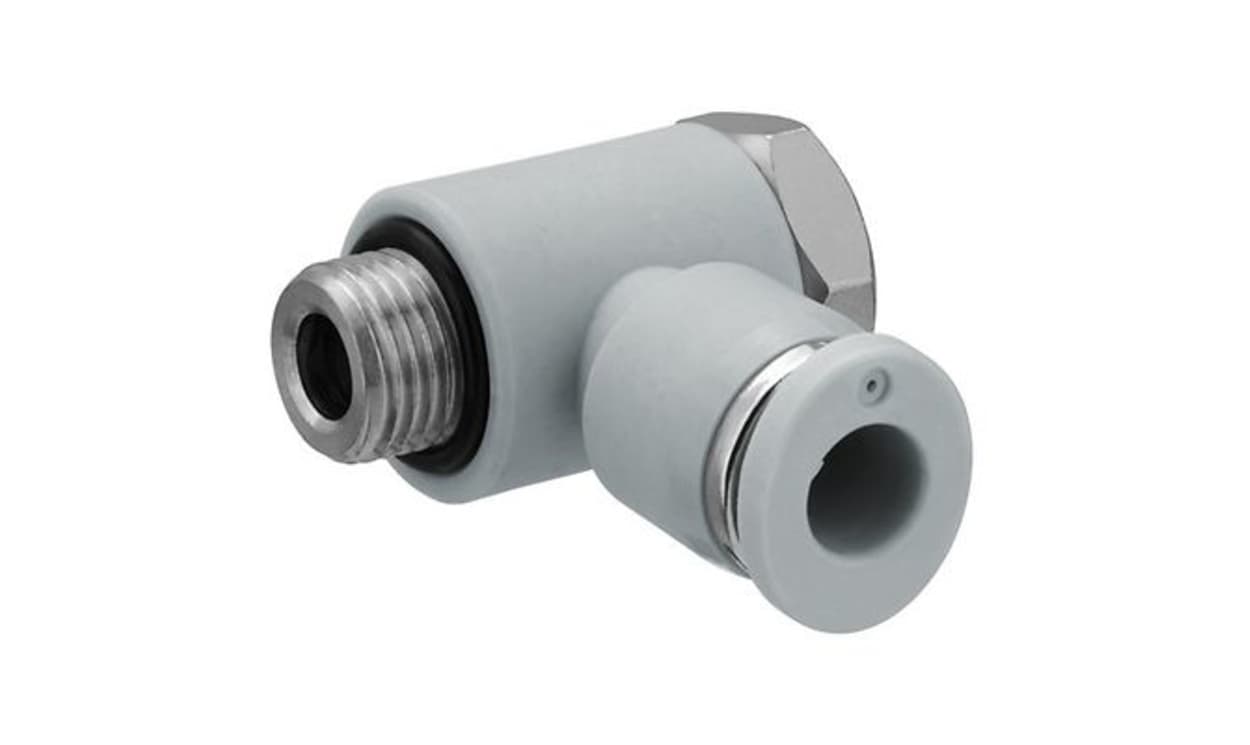

AVENTICS R412005236 | Pneumatic Fitting | M5 to 4 mm push-in

Name: AVENTICS R412005236 | Pneumatic Fitting | M5 to 4 mm push-in
Brand: Aventics
SKU: R412005236
Availability: InStock

Part Number : R412005236

Connecting M5 to 4 mm push-in, the AVENTICS R412005236 is a pneumatic fitting from the QR1-S-RW1 series. Listed details for R412005236: a threaded connection style.

Connector A: M5
Connector B: Push In 4 mm
Connection style: Threaded
Series: QR1-S-RW1

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Swivel Tube Fitting is a push-in connectors with easy, secure mounting offers a cylindric thread that allows repeated connection and release without problems and captive O-ring guarantees an optimal sealing. It offers the right solution for every application and industry.

Swivel banjo connection 1 fold
Port G is M5 and Port D diameter is 4mm
Tooth lock washer is stainless steel
Surface release ring holder is nickel plated

Brand	AVENTICS
Connector A	M5
Connector B	Push In 4 mm
Connection Style	Threaded
Threaded Connection	M5
Manufacturer Series	QR1-S-RW1
Model Number p	R412005236

AVENTICS R412005236 | Pneumatic Fitting | M5 to 4 mm push-in

DOWNLOAD CATALOG

R412005236 Datasheet - R412005236 A700000012803345
