AVENTICS R412006318 G 1/4 FRL, Semi Automatic Drain, 5μm Filtration Size - With Pressure Gauge

Name: AVENTICS R412006318 G 1/4 FRL, Semi Automatic Drain, 5μm Filtration Size - With Pressure Gauge
Brand: Aventics
SKU: R412006318
Availability: OutOfStock

Part Number : R412006318

Availability: Sold out

Detailed Description
Specifications

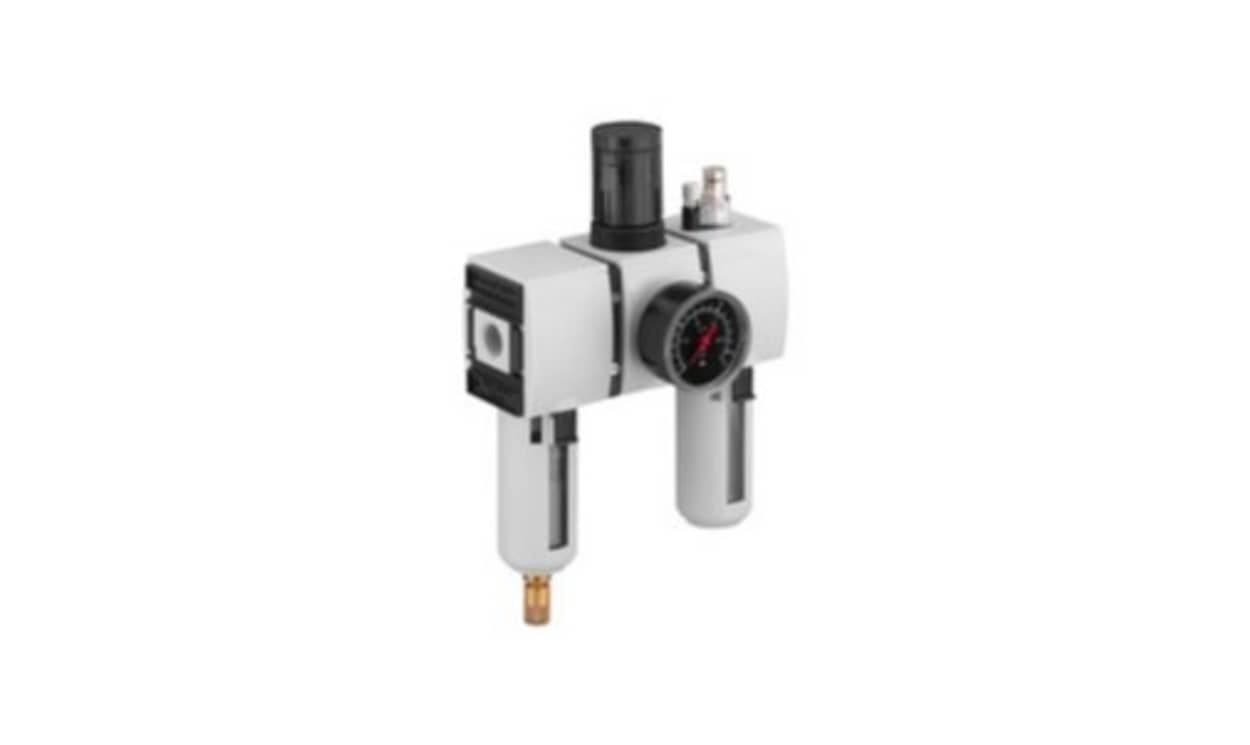

AS Series Filter Regulator Lubricator Assembley Plus Gauge

Diaphragm type pressure regulator with relieving air exhaust
Temperature range -10 → +50 °C
Drain sprung open with pressure off
Padlock lockable regulator
Lubricator semi-automatic oil filing during operation
ATEX Certified II 2G2D T4 X

AS Series FRL

The AS range of air preparation units may be used as single elements or in combination units using joining accessories

Brand	AVENTICS
Port Connection	G 1/4
Integrated Pressure Gauge	With Pressure Gauge
Drain Type	Semi Automatic
Manufacturer Series	AS2-ACT
Filtration Size	5µm
Minimum Operating Pressure	1.5bar
Minimum Ambient Operating Temperature	-10°C
Port Connection Thread Size	1/4 in
Port Connection Thread Standard	G
Maximum Operating Pressure	16 bar
Ambient Operating Temperature Range	-10 → +50°C
Minimum Process Operating Temperature	-10°C
Maximum Ambient Operating Temperature	+50°C
Maximum Process Operating Temperature	+50°C
Process Operating Temperature Range	-10 → +50°C

AVENTICS R412006318 G 1/4 FRL, Semi Automatic Drain, 5μm Filtration Size - With Pressure Gauge

AVENTICS R412006318 G 1/4 FRL, Semi Automatic Drain, 5μm Filtration Size - With Pressure Gauge

AS Series Filter Regulator Lubricator Assembley Plus Gauge
