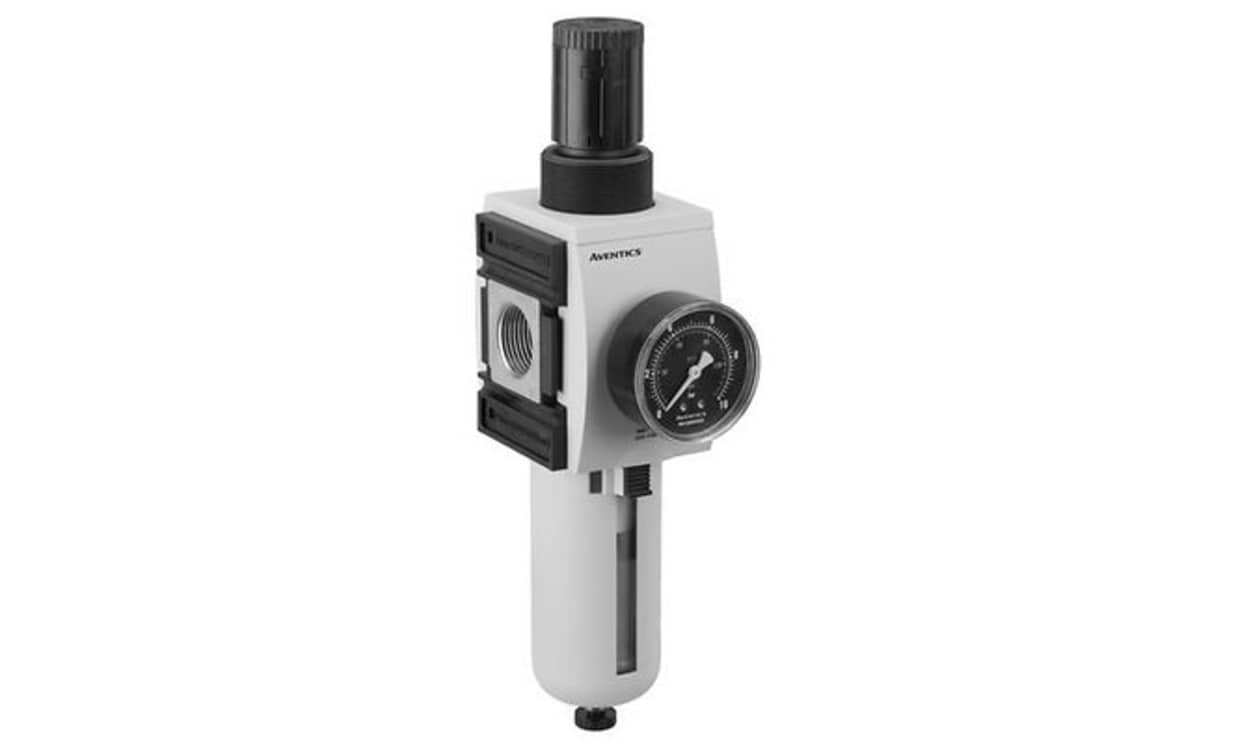

AVENTICS R412009207 | AS5 Filter Regulator | 5 µm, G 3/4, Automatic Drain

Name: AVENTICS R412009207 | AS5 Filter Regulator | 5 µm, G 3/4, Automatic Drain
Brand: Aventics
SKU: R412009207
Availability: InStock

Part Number : R412009207

Part R412009207 is an AVENTICS AS5 filter regulator for G 3/4 lines, specified with an automatic drain and 5 µm filtration. Operating pressure runs from 1.5 bar to 16 bar. Ambient temperature range is -10 °C to +50 °C.

Filtration size: 5 µm
Port connection: G 3/4
Drain: automatic
Operating pressure: 1.5 bar to 16 bar
Ambient temperature: -10 °C to +50 °C
Series: AS5

Availability: low stock

Detailed Description
Specifications

The Aventics Filter pressure regulator, Series AS5-FRE is a modular and versatile maintenance unit for universal application. This series offers compact dimensions, high efficiency, light weight, and ease of use. The Series AS guarantees reliability, safety, and efficiency with simplified assembly and maintenance efforts.

Minimum working pressure 1.5 bar
Maximum working pressure 16 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
Minimum regulation range 0.5 bar
Maximum regulation range 8 bar

Brand	AVENTICS
Port Connection	G 3/4
Maximum Operating Pressure	16 bar
Manufacturer Series	AS5
Drain Type	Automatic
Filtration Size	5µm
Maximum Ambient Operating Temperature	+50°C
Minimum Operating Pressure	1.5bar
Minimum Ambient Operating Temperature	-10°C
Model Number	R412009207
Ambient Operating Temperature Range	-10 → 50°C
