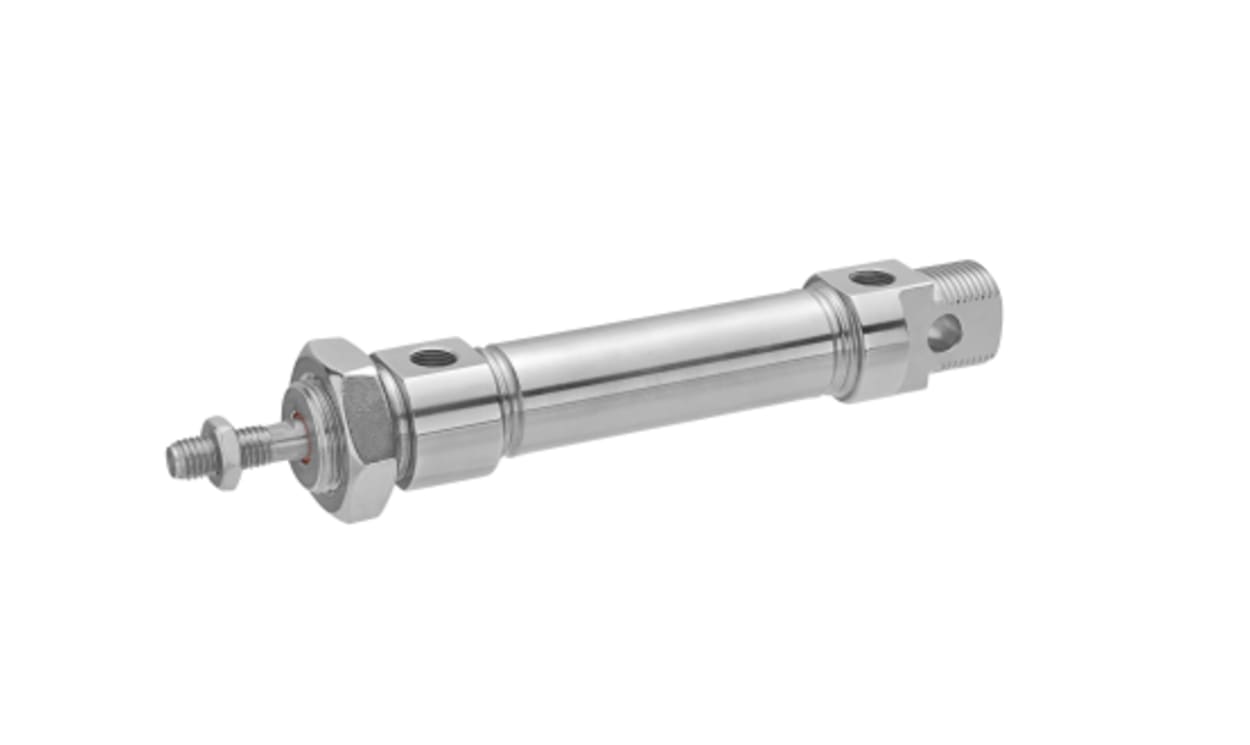

AVENTICS R412020408 | CSL-RD Roundline Cylinder | 16 mm Bore, 500 mm Stroke, Elastic Cushioning
Built around a 16 mm piston and 500 mm stroke, the AVENTICS R412020408 is a double-acting ISO 6432 CSL-RD roundline cylinder. With elastic cushioning, R412020408 accepts up to 10 bar and works between -20 °C and +80 °C.
- Bore 16 mm, stroke 500 mm
- M5 pneumatic and port connections, rod end with male thread (16 mm bore body)
- AVENTICS CSL-RD range, listed under ISO 6432
- Detailed Description
- Specifications
- Downloads
Guaranteed food safety
Resistant to chemicals
| Brand | AVENTICS |
| Manufacturer Series | CSL-RD |
| Model Number P | R412020408 |
| Action | Double |
| Bore | 16 mm (0.630 in) |
| Stroke | 500 mm (19.7 in) |
| Pneumatic Connection | M5 |
| Port Connection | M5 |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Male |
| ISO Standard | ISO 6432 |
