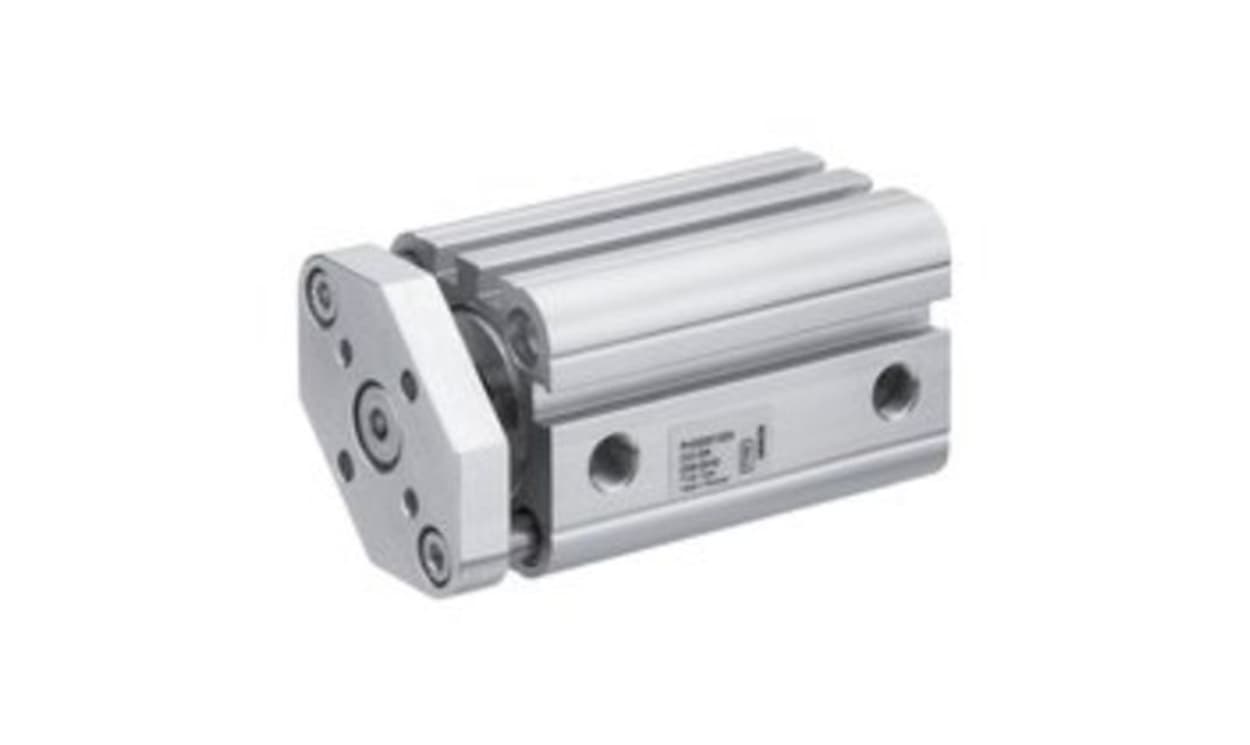

AVENTICS R422001323 | 20 mm Bore, 40 mm Stroke CCI Compact Cylinder | Double Acting, M5
With a 20 mm bore and a 40 mm stroke, the AVENTICS R422001323 is a double-acting compact cylinder from the CCI series. This 20/40 mm unit takes air through M5 ports, uses elastic cushioning and is rated for a maximum of 10 bar.
- R422001323: bore 20 mm, stroke 40 mm, double acting
- M5 air ports for the R422001323
- R422001323 rod end: female thread
- 10 bar maximum pressure, -20 °C to +80 °C range for the 20 x 40 mm R422001323
- ISO standard listed for R422001323: ISO 21287
- Detailed Description
- Specifications
- Downloads
Double-acting functionality improves work efficiency
Elastic cushioning for reduced shock impact during operation
Versatile installation options for sensors across the entire length
Designed for both high and low ambient temperature management
Low maintenance requirements mean minimal downtime
Customisable stroke lengths to suit specific application needs
Robust materials ensure longevity and durability in challenging environments
Compatible with multiple mounting accessories for versatile utilisation
| Brand | AVENTICS |
| Manufacturer Series | CCI |
| Model Number P | R422001323 |
| Action | Double |
| Bore | 20 mm (0.787 in) |
| Stroke | 40 mm (1.57 in) |
| Pneumatic Connection | M5 |
| Port Connection | M5 |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Female |
| ISO Standard | ISO 21287 |
