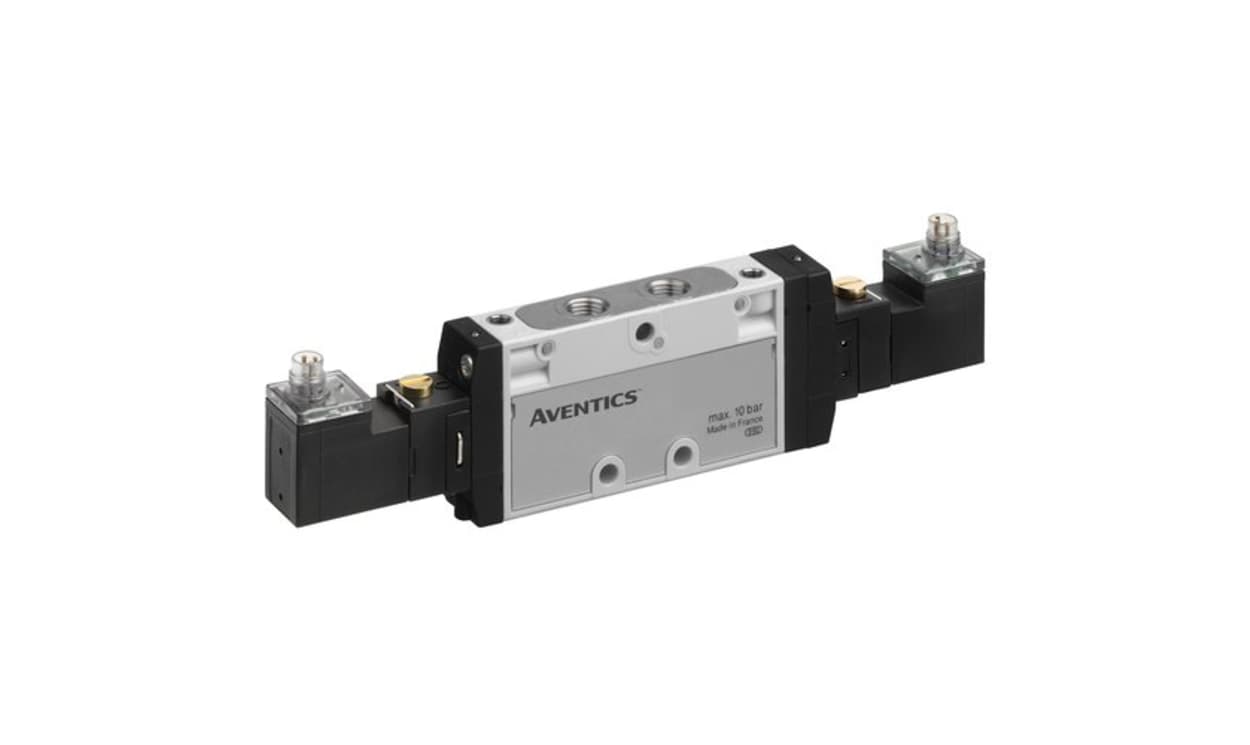

AVENTICS R422100974 5/3 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 TC08 Series 24V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R422100974 5/3 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 TC08 Series 24V dc

Name: AVENTICS R422100974 5/3 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 TC08 Series 24V dc
Brand: Aventics
SKU: R422100974
Availability: OutOfStock

Part Number : R422100974

Availability: Sold out

Specifications

Brand	AVENTICS
Function	5/3
Connection Port Thread	G 1/8
Actuation Type	Pilot/Pilot
Manufacturer Series	TC08
Mounting Style	Manifold
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Number of Ports	5/3
Body Material	Fibreglass Reinforced PA
Maximum Flow Rate	700L/min
Solenoid Power Consumption	2.2W
Minimum Operating Pressure	3bar
Maximum Operating Temperature	+50°C
Maximum Operating Pressure	10bar
Thread Size	1/8in
Minimum Operating Temperature	-10°C
Thread Standard	G
