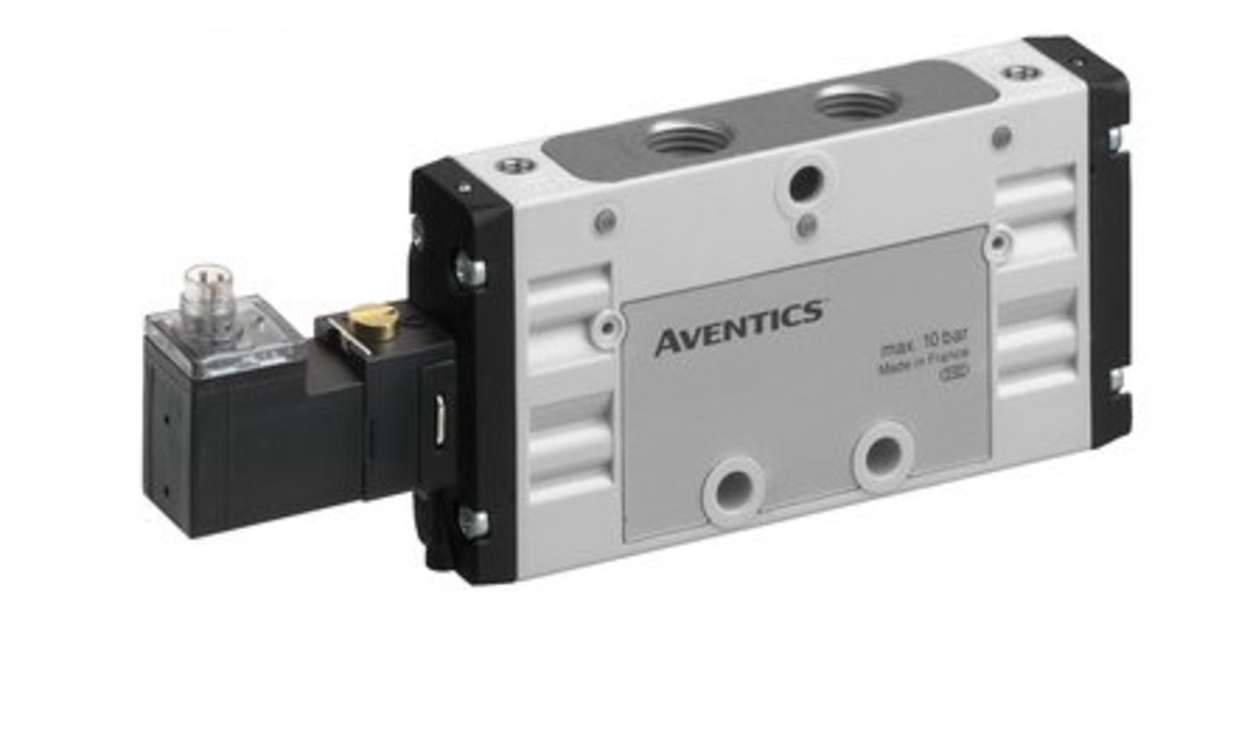

AVENTICS R422100989 5/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 TC15 Series 24V dc

Name: AVENTICS R422100989 5/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 TC15 Series 24V dc
Brand: Aventics
SKU: R422100989
Availability: OutOfStock

Part Number : R422100989

Availability: Sold out

Detailed Description
Specifications
Downloads

TC15 Valves

Massive flow from a 21 mm wide body of 1500 l.min for all 5 / 2 functions and 1300 l/min for all 5 3 functions, this stand alone range of valves can also be mounted together on a P strip manifold

Spool Valve, non overlapping
M8 3 pin electrical connection
IP65
External pilot option allowing vacuum applications
Manual override with detent
Maximum particle size of 5μm
Oil content of compressed air 0 → 5mg/m³
100 % duty cycle
Polyamide glass-fibre reinforced body

Rexroth TC15 Valves

Brand	AVENTICS
Function	5/2
Connection Port Thread	G 1/4
Actuation Type	Pilot/Spring
Manufacturer Series	TC15
Mounting Style	Manifold
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Number of Ports	5/2
Body Material	Fibreglass Reinforced PA
Maximum Flow Rate	1500L/min
Solenoid Power Consumption	2.2W
Minimum Operating Pressure	-0.9bar
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Thread Size	1/4in
Maximum Operating Pressure	10bar
Thread Standard	G

AVENTICS R422100989 5/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 TC15 Series 24V dc

DOWNLOAD CATALOG
