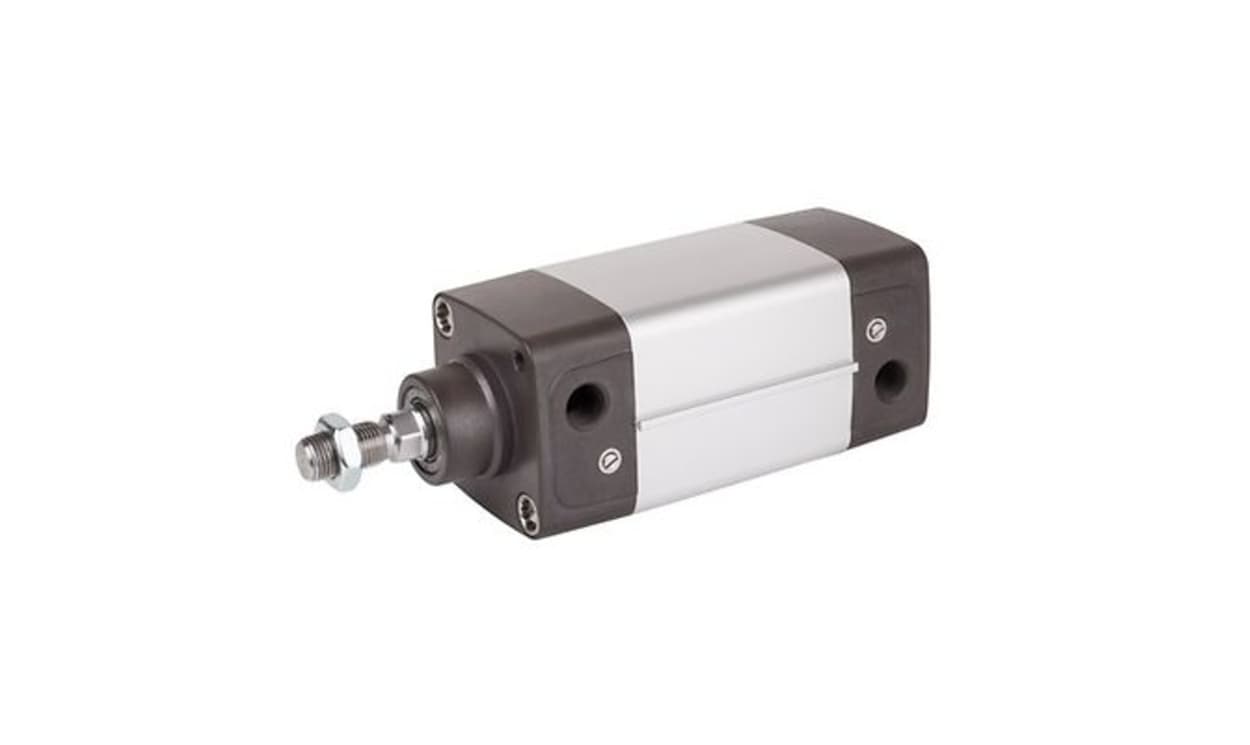

AVENTICS R480060086 ISO Standard Cylinder - , 125mm Bore, 200mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480060086 ISO Standard Cylinder - , 125mm Bore, 200mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060086
Availability: OutOfStock

Part Number : R480060086

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IS series cylinders are engineered to meet the stringent demands of hygienic applications in the food industry. Designed according to ISO 15552 standards, these cylinders offer exceptional flexibility with a unique configuration for air connections, allowing seamless integration into existing systems. Their robust construction ensures high corrosion resistance and the option to include ATEX certification makes them suitable for flammable environments. With a range of controlling features and a modular design, these cylinders enhance operational efficiency while adhering to the highest safety standards. Ideal for use in food processing, the CCL-IS series combines advanced technology with practicality, ensuring reliable performance in any challenging environment.

Double-acting functional principle optimises performance and control
Pneumatic adjustable cushioning enhances precision and reduces wear
Constructed with high-quality stainless steel for durability and corrosion resistance
Multiple stroke lengths available for tailored applications
Efficiently configurable for air connections, maximising design possibilities
Suitable for both ambient and medium temperature extremes
Lightweight design enables easier handling and installation
Standard industry scraper ensures longevity and reduced maintenance
Modular scraper systems offer additional flexibility for various applications
Optional ATEX certification for safe operation in explosive atmospheres

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060086
Stroke	200mm
Action	Double
Bore	125mm
Pneumatic Connection	G 1/2
Port Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
