Barton 7125 Flanged RF meter, meter Size :2-1/2 inch,End Connection Size :1 inch,Flow Rate :44-440 US GPM

Model 7125 · 2-1/2"

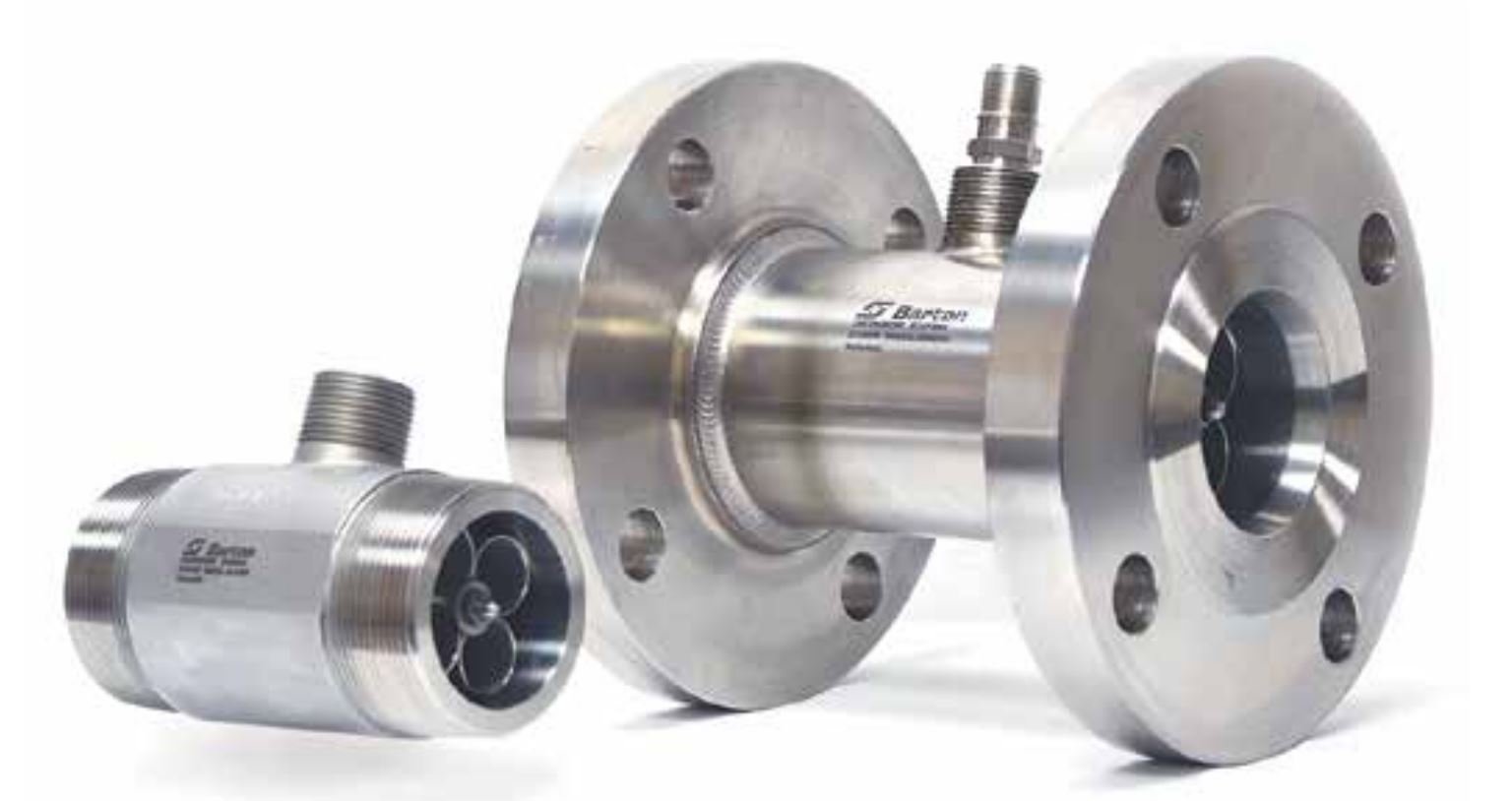

The Barton 7125 is a 2-1/2" liquid turbine flow meter from Barton's Model 7100 range, listed for 44-440 US GPM. It suits low-viscosity liquids, including hydrocarbons. Genuine Barton stock at General Tech Services LLC, UAE, with free UAE-wide shipping. Request a quote in under a minute - call +971 6 5436933.

Part Number: 7125
Contact Number: +971 6 5436933

Mid-size liquid lines in production, process and transfer service need a meter that reads accurately across a wide flow range. The Barton 7125 is a 2-1/2" turbine meter listed for 44-440 US GPM.

A turbine flow meter places a balanced rotor in the liquid stream. Flow turns the rotor at a speed proportional to the flow rate, while a pickup coil on the meter body senses each passing blade tip and produces a pulse signal. Counting the pulses gives volume, and their frequency gives flow rate. The rotor is the only moving part.

The Barton 7125 belongs to Barton's Model 7100 line, which covers 3/8" to 8" meters. Model 7100 meters use wear-resistant tungsten carbide sleeve bearings, which require no lubrication and are suited to demanding service. Barton's 7000 series uses a symmetrical bidirectional design, allowing it to measure flow in either direction where capacities are the same both ways.

Barton's published series data gives linearity of ±0.25% of reading over the flow range and repeatability of ±0.02% of reading. The 7125 is listed with a flanged connection. For accurate results, install the meter in straight pipe of the same diameter, with at least 10 pipe diameters of straight run upstream. Confirm materials, pressure rating and electronics against the Barton datasheet and your process before ordering.

Need a different size or model line? Compare the Barton 7102 (2", 24-240 US GPM) or the Barton 7103 (3", 70-700 US GPM).

Key Benefits

• 2-1/2" meter listed for 44-440 US GPM

• Flanged connection as listed

• Rotor is the only moving part, keeping maintenance simple

• Tungsten carbide sleeve bearings for demanding service

• Bidirectional design measures flow in either direction

• Pickup coil pulse output adapts readily to many flow computers and readouts

• Genuine Barton stock with free UAE-wide shipping

Contact Details

General Tech Services LLC supplies genuine Barton stock in the UAE. Call +971 6 5436933 for pricing, stock availability and lead time.

Who This Product Is Best For

• Production, process and transfer lines in oil and gas

• Low-viscosity liquid measurement where accuracy matters

• Mid-size liquid flow measurement applications

• Replacing an existing Barton 7000 meter like-for-like

How to Specify & Install It

1. Check that your normal and maximum flow fall within 44-440 US GPM and that your liquid is suitable for a turbine flow meter.

2. Confirm the flanged connection and install the meter in straight pipe of the same diameter, with at least 10 diameters of straight run upstream, as specified by Barton.

3. Connect the pickup coil to your flow computer or readout and enter the meter's K-factor from its calibration certificate.

4. Confirm the meter materials, pressure rating and electronic configuration against the Barton datasheet and your process before ordering.

5. Verify the installation and flow direction requirements before putting the meter into service.

Frequently Asked Questions

How does a turbine flow meter work?
Liquid turns a balanced rotor, while a pickup coil senses each blade and produces pulses in proportion to flow.

Which liquids suit the Barton 7125?
Barton's 7000 series is designed for low-viscosity liquids, including hydrocarbon liquids. Confirm viscosity and material compatibility before ordering.

How accurate is the Barton 7125?
Barton's series data gives linearity of ±0.25% of reading over the flow range and repeatability of ±0.02% of reading.

Does the meter need straight pipe?
Yes. Barton specifies straight pipe of the same diameter with at least 10 diameters upstream for accurate operation.

What connection does the Barton 7125 use?
The Barton 7125 is listed with a flanged connection. Confirm the required connection configuration against the Barton datasheet before ordering.

Should I choose the 7125 or another size?
Size the meter to your actual flow rather than simply matching the pipe size. The 7125 is listed for 44-440 US GPM. For lower flows, consider the Barton 7102. For higher flows, consider the Barton 7103. Contact General Tech to confirm the suitable model.

Can it measure reverse flow?
The 7000 series has a symmetrical bidirectional design, and electronic options can sense flow direction.

Is genuine Barton stock available with UAE shipping?
Yes. Genuine Barton stock ships free across the UAE. Call +971 6 5436933 for current pricing and lead time.
