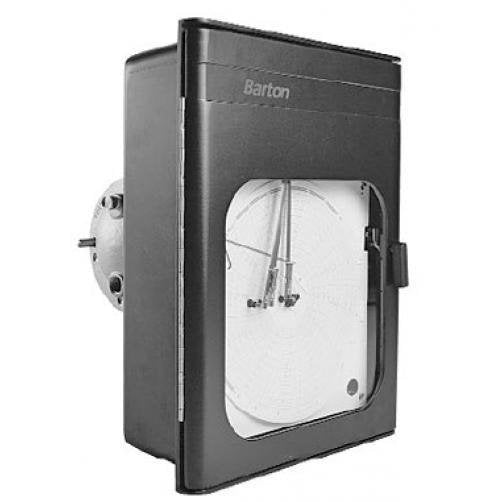

Barton Two Pen Pressure Temperature Recorder, Model 242E, Pressure Range: 0-400 Psi, Battery Driven Chart Drive: 11 Selectable Speeds
Model 242E · 0-400 psi
The Barton 242E 0-400 psi two-pen pressure and temperature recorder charts line pressure and temperature together on one circular chart, using a battery chart drive with 11 selectable speeds. Suited to medium-pressure pipelines, process headers and vessel tests. Genuine Barton stock at General Tech Services LLC, UAE, with free UAE-wide shipping. Request a quote in under a minute - call +971 6 5436933.
Part Number: 242E
Contact Number: +971 6 5436933
Field teams often need one recorder for different medium-pressure applications. A 0-400 psi range and 11 battery-driven chart speeds let the same unit handle short tests and longer monitoring periods.
The Model 242E is a two-pen recorder. One pen traces pressure and the other traces temperature on the same rotating chart, so you can see whether a pressure change followed a temperature change or happened independently. This is useful during pressure tests, where a temperature change can explain a small pressure drop that might otherwise look like a leak.
This version uses a battery-driven chart drive with 11 selectable speeds. Faster speeds spread a short test across the chart for greater detail, while slower speeds allow longer monitoring periods to fit onto a single chart. There is no mechanical clock to wind, and the chart speed can be changed to suit each job.
Choose the pressure range so that your normal working or test pressure sits well inside the scale, ideally around the middle, and never above 0-400 psi. The temperature range is not stated in the listing, so confirm it with our team before ordering.
Need a different range or chart drive? Compare the Barton 242E 0-300 psi, battery chart drive with 11 speeds; the Barton 242E 0-500 psi, battery chart drive with 11 speeds; or the Barton 242E 0-400 psi, 2 hr/8 hr mechanical drive.
Key Benefits
-
Two pens record pressure and temperature on one chart.
-
0-400 psi range suited to medium-pressure pipelines, process headers and vessel tests.
-
11 selectable chart speeds provide flexibility for short tests and long monitoring periods.
-
Battery-driven chart drive eliminates the need to wind a mechanical drive.
-
Paper chart provides a clear, signed record for test reports and audits.
-
Proven Barton design widely used in field and test work.
-
Genuine Barton stock with free UAE-wide shipping.
Contact Details
General Tech Services LLC supplies genuine Barton stock in the UAE. Call +971 6 5436933 for pricing, stock availability and lead time.
Who This Product Is Best For
-
Field teams using one recorder across short and long jobs.
-
Service companies that need flexible chart speeds on site.
-
Users who prefer a battery-driven recorder without winding a mechanical drive.
-
Medium-pressure pipeline, process header and vessel testing applications within the 0-400 psi range.
How to Specify & Install It
-
Confirm that 0-400 psi covers your working or test pressure with suitable margin, and check the temperature range for your process.
-
Mount the recorder securely and connect the pressure connection and temperature element as specified in the Barton manual.
-
Fit the batteries, select the chart speed for the job and install a fresh chart.
-
Ink the pens and check that they rest on zero before starting the test.
-
Record and sign the chart when the test or recording period ends.
Frequently Asked Questions
What does a two-pen pressure and temperature recorder do?
It records pressure and temperature continuously on one circular chart, providing a time-based record of both measurements.
How do I choose between 0-400 psi and other ranges?
Choose a range where your normal or test pressure sits well inside the scale. For lower pressures, see the Barton 242E 0-300 psi, battery chart drive with 11 speeds. For higher pressures, see the Barton 242E 0-500 psi, battery chart drive with 11 speeds. Our team can help confirm the best fit.
What are the 11 selectable speeds for?
They let you match chart rotation to the job, from short tests requiring more detail to longer monitoring periods that need to fit on one chart.
Is 0-400 psi also available with a different chart drive?
Yes. See the Barton 242E 0-400 psi, 2 hr/8 hr mechanical drive.
Do I need a different recorder for short and long jobs?
No. Changing the chart speed allows the same recorder to cover both short tests and longer monitoring periods.
What is the temperature range?
It is not stated in the listing. Contact our team to confirm the temperature range before ordering.
Is genuine Barton stock available with UAE shipping?
Yes. Genuine Barton stock ships free across the UAE. Call +971 6 5436933 for current pricing and lead time.
