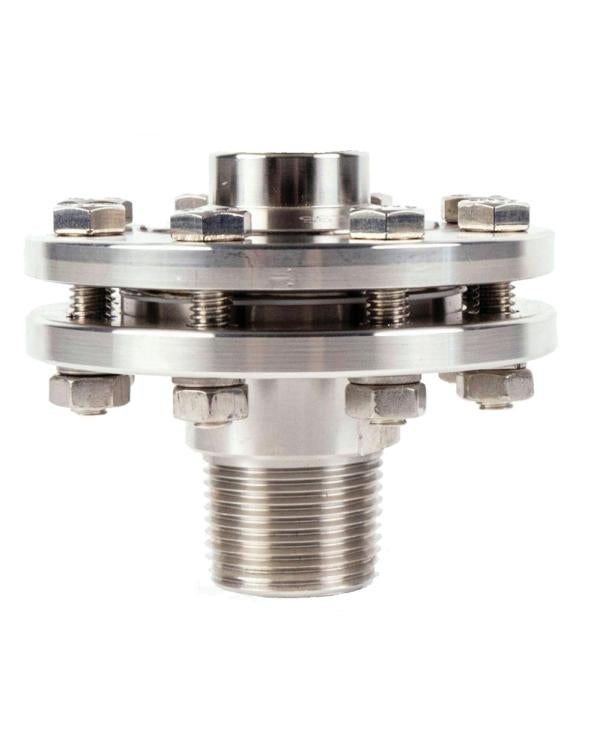

Brannan DS003 | Diaphragm Seal, 2-Piece Industrial Type | Up to 100 bar
Part Number : DS003

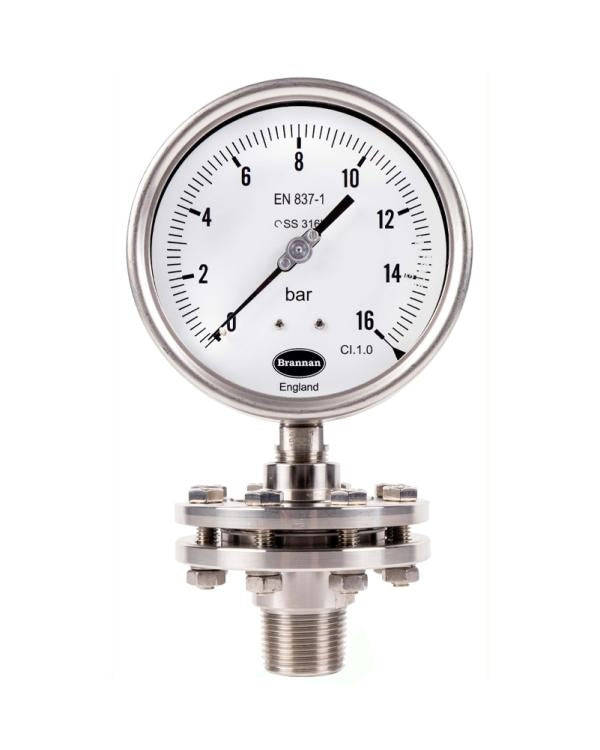

Brannan DS003 is a two-piece industrial diaphragm seal that protects a pressure gauge from corrosive media. A metal diaphragm with Teflon gasket sits between removable top and bottom housings joined by stainless steel clamp rings and bolts. It is rated to 100 bar with a metal bottom housing, or 10 bar with PVC or polypropylene, and diaphragm materials and fill fluids can be chosen to suit the process.
Key features
- Protects the gauge from corrosion
- Removable top and bottom housings
- Metal diaphragm with Teflon gasket
- 100 bar max (metal housing), 10 bar (other housings)
- Optional flushing connection
For pricing, please contact our experts.
