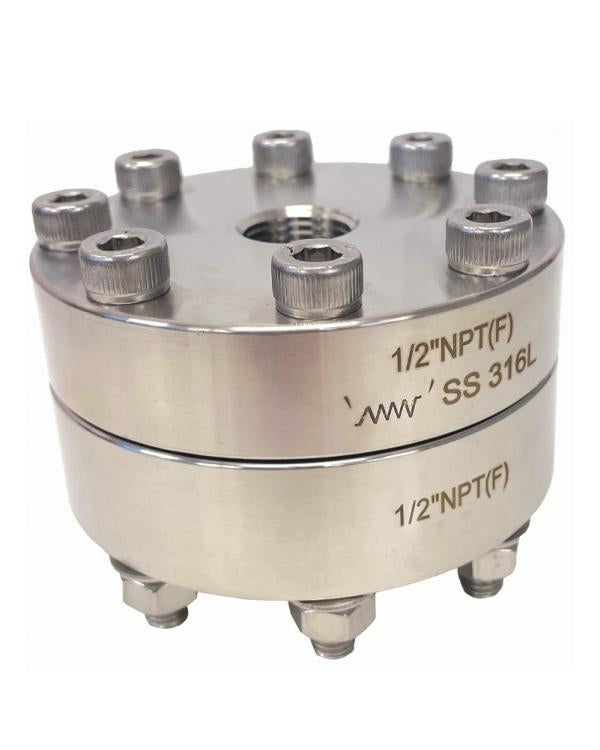

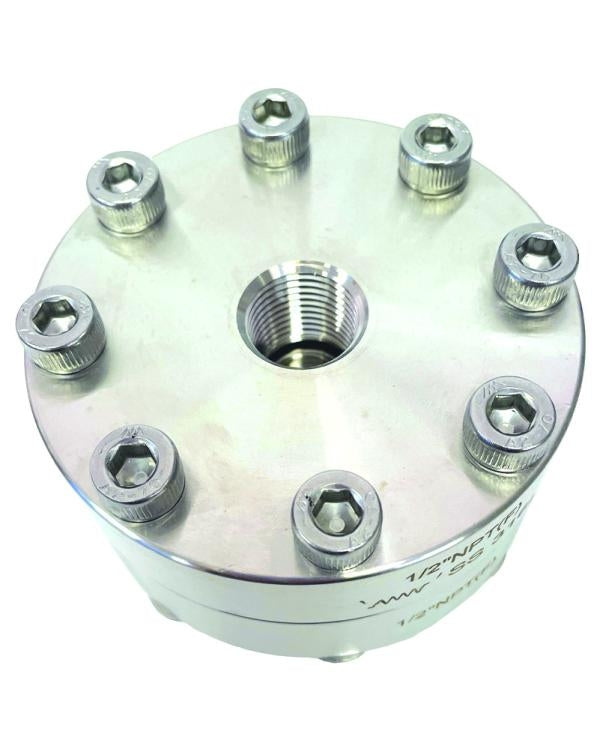

Brannan DS006 | Diaphragm Seal, 2-Piece Heavy Duty | 100 or 400 bar
Part Number : DS006
Brannan DS006 is a heavy duty two-piece diaphragm seal with the diaphragm welded to the housing, used to isolate a pressure gauge from the process. It is offered in standard 100 bar or high pressure 400 bar versions, with a choice of diaphragm and housing materials and fill fluids so it can be matched to oil and gas, process and petrochemical media. A flushing connection is optional.
Key features
- 2-piece heavy duty construction, diaphragm welded to housing
- Max pressure 100 bar standard or 400 bar high pressure
- Diaphragm in SS316L, Hastelloy C or Monel
- Fill fluids Flurolube, Silicone DC200 or Syltherm 800
- Optional flushing connection and materials test certificate
For pricing, please contact our experts.
