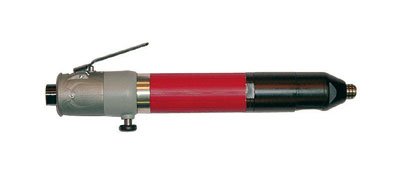

Chicago Pneumatic CP2011 | Straight Cushion Clutch Air Screwdriver | 2-5.5 Nm, 1,470 rpm
Chicago Pneumatic designed the CP2011 straight cushion clutch air screwdriver for fastening between 2 and 5.5 Nm, with a free speed of 1,470 rpm. Quiet and productive, it is built for intensive assembly with fast cycle times and stays comfortable even under hard pushing.
- Straight body with cushion clutch; quick change hexagonal female bit holder
- Joint types: hard, soft
- Weighs 0.9 kg (2 lb) with an overall length of 278 mm (10.9 in)
- Uses 9 l/s (19.1 cfm) of air at free speed
- Rated at 73 dB(A) sound pressure and <2.5 m/s² vibration
- Ordering reference 6151922011
- Specifications
- Features
| Part Number | CP2011 |
| Brand | Chicago Pneumatic |
| Clutch type | Cushion |
| Handle type | Straight |
| Working torque range | 2-5.5 Nm |
| Free speed | 1,470 rpm |
| Output drive | 1/4 in |
| Bit holder | Quick Change Hexagonal Female |
| Joint types | Hard, Soft |
| Net weight | 0.9 kg (2 lb) |
| Length | 278 mm (10.9 in) |
| Air inlet thread | 1/4 in |
| Air consumption (free speed) | 9 l/s (19.1 cfm) |
| Sound pressure level | 73 dB(A) |
- Straight Cushion clutch
- screwdriver
- Progressive lever start
- High speed: 1,470 rpm
- One-hand reverse valve
- Low noise level: 73 dB(A)
