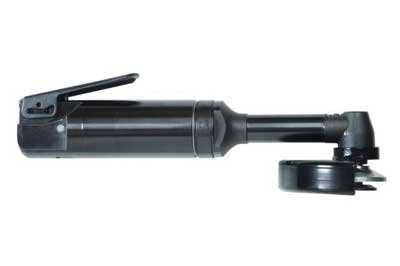

Chicago Pneumatic CP3040GASTIM | Pneumatic Angle Grinder | 100 mm (4 in) wheel, 520 W
Taking 100 mm (4 in) wheels, the Chicago Pneumatic CP3040GASTIM air angle grinder is rated at 520 W (0.7 hp) and runs at 13,500 rpm. Built with a steel body, this version is designed to cope with rough handling and extreme temperatures.
- Net weight 1.7 kg (3.7 lb), length 270 mm (10.6 in)
- 3/8 in air inlet, minimum hose 10 mm, free speed air consumption 15.5 l/s (32.86 cfm)
- Actual air consumption: 12.5 l/s (26.5 cfm)
- Sound pressure 92 dB(A), vibration 9.6 m/s²
- Manufacturer product number 6151607020
- Specifications
- Features
| Part Number | CP3040GASTIM |
| Brand | Chicago Pneumatic |
| Wheel size | 100 mm (4 in) |
| Power | 520 W (0.7 hp) |
| Free speed | 13,500 rpm |
| Net weight | 1.7 kg (3.7 lb) |
| Length | 270 mm (10.6 in) |
| Air inlet thread | 3/8 in |
| Min. hose size | 10 mm (3/8 in) |
| Air consumption (free speed) | 15.5 l/s (32.86 cfm) |
| Air consumption (actual) | 12.5 l/s (26.5 cfm) |
| Sound pressure level | 92 dB(A) |
| Vibration | 9.6 m/s² |
| Manufacturer product number | 6151607020 |
- Durable bevel gear.
- Robust machined steel housing
- Robust safety lever
- 4" (100 mm) wheel capacity
- 1 hp (750 W) motor
- 13,500 rpm free speed
- Side exhaust
