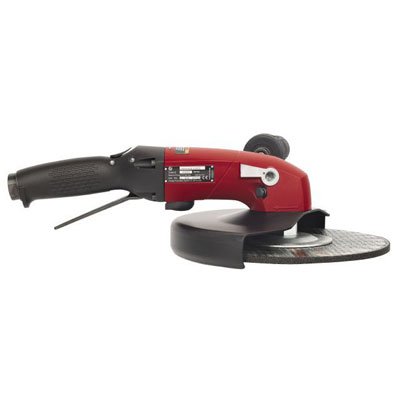

Chicago Pneumatic CP3850-60AB9V | Angle Grinder | 230 mm Wheel, 6,000 rpm, 2,100 W
Chicago Pneumatic's CP3850-60AB9V angle grinder combines a 230 mm (9 in) wheel size, a free speed of 6,000 rpm and a 2,100 W (2.8 hp) motor. An industrial angle wheel grinder, the CP3850-60AB9V is quoted with maintenance intervals of up to 2,000 hours in demanding applications.
- Ergonomic design
- Side-to-centre distance 29 mm (1.14 in)
- 6,000 rpm free speed from a 2,100 W (2.8 hp) air motor
- 1/2 in air inlet, air consumption 38 l/s (80 cfm)
- 340 mm (13.4 in) overall length, net weight 3.2 kg (7 lb)
- Declared noise 93 dB(A), vibration 6.8 m/s²
- Specifications
- Features
| Part Number | CP3850-60AB9V |
| Brand | Chicago Pneumatic |
| Wheel size | 230 mm (9 in) |
| Free speed | 6,000 rpm |
| Power | 2,100 W (2.8 hp) |
| Net weight | 3.2 kg (7 lb) |
| Length | 340 mm (13.4 in) |
| Side to centre | 29 mm (1.14 in) |
| Height over spindle | 122 mm (4.8 in) |
| Air consumption (actual) | 38 l/s (80 cfm) |
| Air inlet thread | 1/2 in |
| Sound pressure | 93 dB(A) |
| Sound power | 104 dB(A) |
| Vibration | 6.8 m/s² |
- Low profile angle head
- Superior durability bevel gearing
- Double action safety lever
- Curved handle housing
- 9" (230 mm) wheel capacity
- 2.8 hp (2,100 W) high performance governed motor
- 6,000 rpm free speed
- Integrated silencer
- Orientable exhaust
- Spindle lock button
- Vibration damping multi-position side handle
- ANSI certification / not for CE Markets
