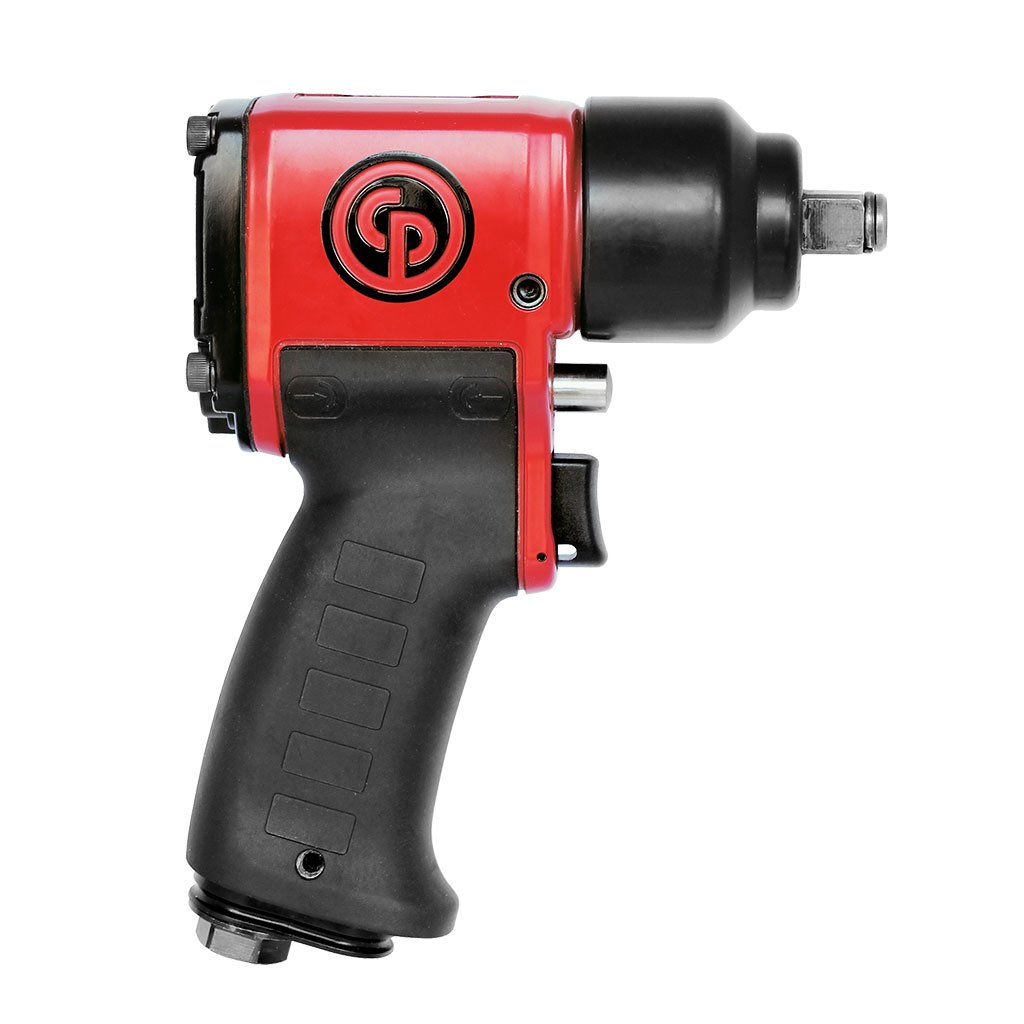

Chicago Pneumatic CP726H | Compact Impact Wrench | 1/2" Drive, 92–257 Nm
The Chicago Pneumatic CP726H is a 1/2" compact impact wrench with a working torque range of 92–257 Nm (68–190 ft.lbs). This 1/2" version serves general repairs and maintenance.
- Compact and durable
- Insulated for operator comfort
- Rugged and easy to handle
- Maximum reverse torque: 271 Nm (200 ft.lbs); free speed 9600 rpm
- Net weight 1.4 kg (3.1 lb), length 146 mm (5.7 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 7.1 l/s (15 cfm)
- Specifications
- Features
| Part Number | CP726H |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 92–257 Nm (68–190 ft.lbs) |
| Maximum Torque (Reverse) | 271 Nm (200 ft.lbs) |
| Free Speed | 9600 rpm |
| Net Weight | 1.4 kg (3.1 lb) |
| Length | 146 mm (5.7 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 7.1 l/s (15 cfm) |
| Product Number | 8941007261 |
| Sound Pressure | 91 dB(A) |
| Vibration | 4.4 m/s² |
- 5.6 in - 146 mm length - 3.1 lbs - 1.4 Kg
- Pin clutch mechanism in oil bath
- One handed push button forward / reverse
- Curved handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip.
- Resistant to most chemicals used in workshops
- 360° swivel air inlet
- Teasing trigger
