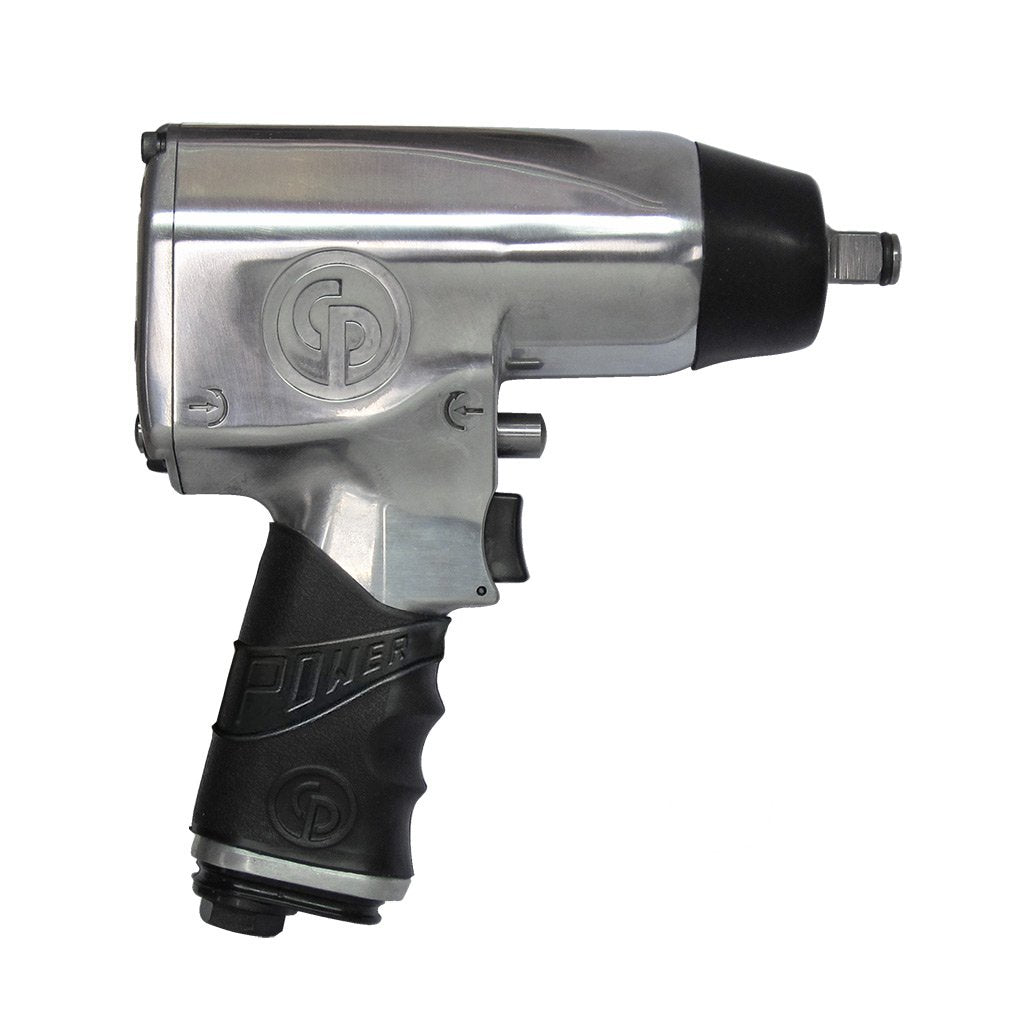

Chicago Pneumatic CP734H | Impact Wrench | 1/2" Drive, 34–420 Nm
Rated for 34–420 Nm (25–310 ft.lbs), the CP734H is a 1/2" impact wrench from Chicago Pneumatic. It is a versatile tool for general repair and maintenance work.
- Oil-bath clutch and robust housing for durability
- Clutch gives smooth, comfortable operation
- Maximum reverse torque: 576 Nm (425 ft.lbs); free speed 8400 rpm
- Net weight 2.32 kg (5.13 lb), length 191 mm (7.5 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 7.1 l/s (15 cfm)
- Sound pressure 93 dB(A), vibration 7.2 m/s²
- Specifications
- Features
| Part Number | CP734H |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 34–420 Nm (25–310 ft.lbs) |
| Maximum Torque (Reverse) | 576 Nm (425 ft.lbs) |
| Free Speed | 8400 rpm |
| Net Weight | 2.32 kg (5.13 lb) |
| Length | 191 mm (7.5 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 7.1 l/s (15 cfm) |
| Product Number | T024351 |
| Sound Pressure | 93 dB(A) |
| Vibration | 7.2 m/s² |
- 1/2" impact wrench for general maintenance with ring retainer
- DYNA-PACT (Pin clutch) with oil bath
- One-handed reverse button with 4 positive power settings
- Compact and ergonomic with rubber grip
- Through handle air exhaust and 360° air inlet swivel
