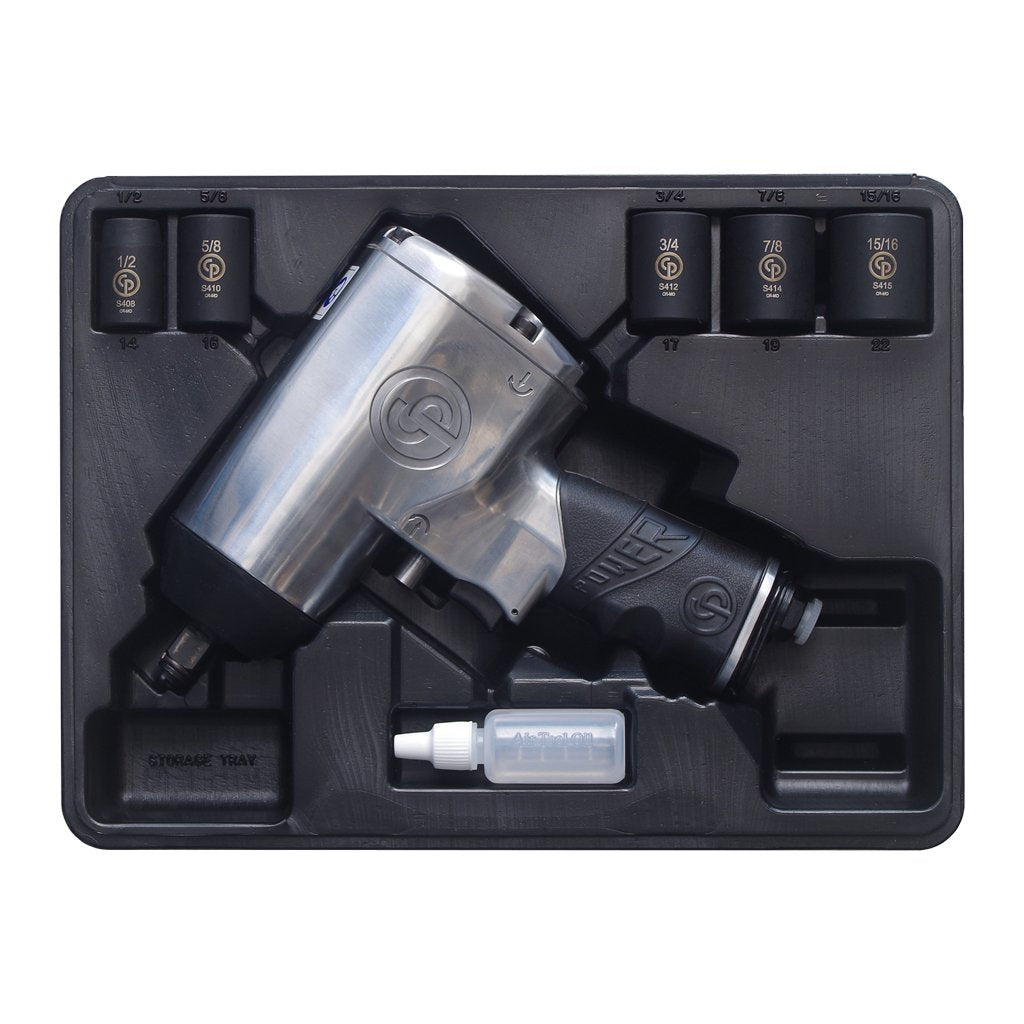

Chicago Pneumatic CP749 Kit | Impact Wrench Kit, Imperial | 1/2" Drive, 68–610 Nm
The Chicago Pneumatic CP749 Kit is a 1/2" impact wrench kit with a working torque range of 68–610 Nm (50–450 ft.lbs). Supplied as an imperial kit, it is intended for general maintenance and repairs.
- Imperial kit
- Resistant motor delivering high torque
- Easy one-handed access to the reverse button
- Maximum reverse torque of 827 Nm (610 ft.lbs); 6400 rpm free speed
- Weighs 2.5 kg (5 1/2 lb) and measures 178 mm (7 in)
- Air inlet 1/4", 10 mm (3/8 in) minimum hose; actual air use 10.4 l/s (22 cfm)
- Specifications
| Part Number | CP749 Kit |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Kit | Imperial kit |
| Working Torque Range | 68–610 Nm (50–450 ft.lbs) |
| Maximum Torque (Reverse) | 827 Nm (610 ft.lbs) |
| Free Speed | 6400 rpm |
| Net Weight | 2.5 kg (5 1/2 lb) |
| Length | 178 mm (7 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 10.4 l/s (22 cfm) |
| Product Number | T025193 |
| Sound Pressure | 96 dB(A) |
