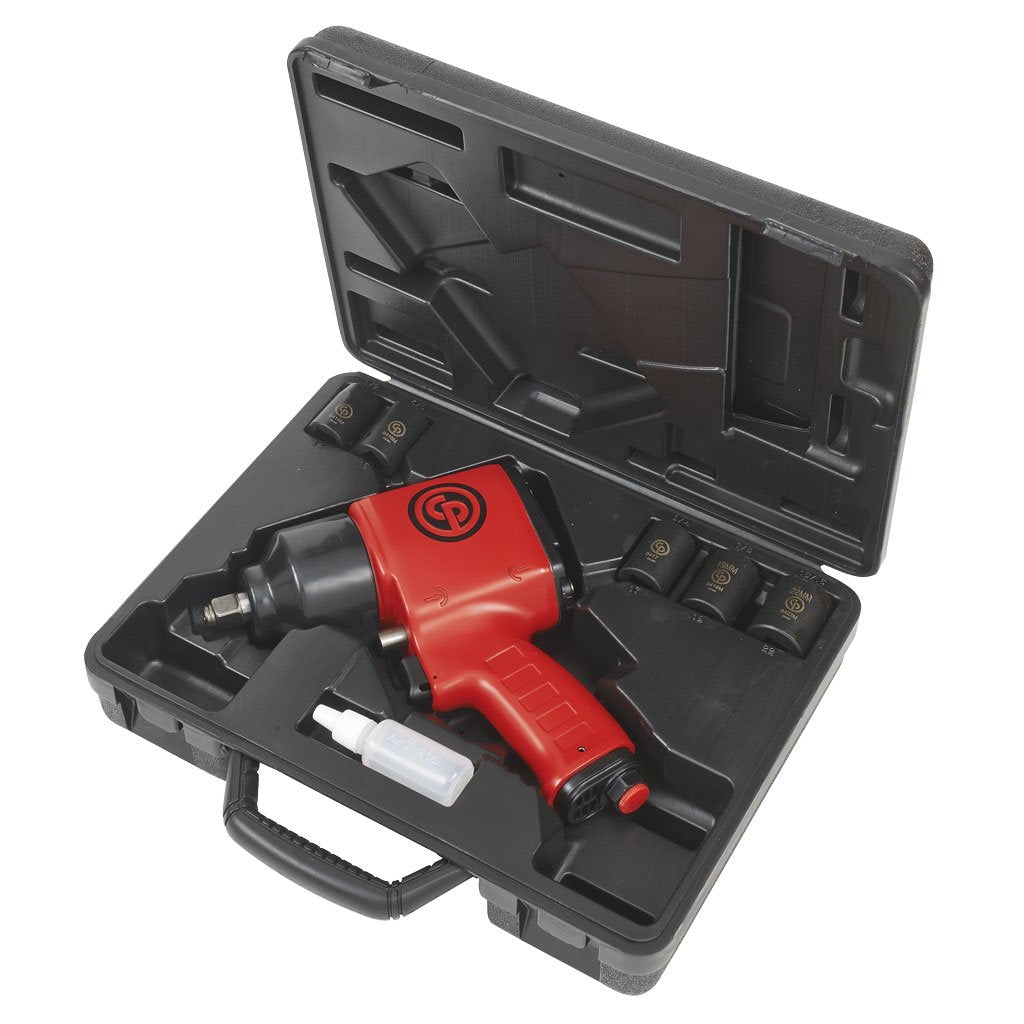

Chicago Pneumatic CP7620KM | Impact Wrench | 1/2" Drive, 34–420 Nm
Chicago Pneumatic's CP7620KM impact wrench has a 1/2" square drive and works across 34–420 Nm (25–310 ft.lbs). It is suited to general repair, transmission work, exhaust systems and body shop use.
- Curved handle with smooth clutch mechanism
- Rugged, easy to operate
- Free speed 10000 rpm
- 180 mm (7.1 in) long and 2.33 kg (5.1 lb) in weight
- Air inlet thread 1/4", min. hose 10 mm (3/8 in); consumes 8.4 l/s (17.7 cfm) of air in use
- Sound pressure: 94 dB(A); vibration: 4.9 m/s²
- Specifications
- Features
| Part Number | CP7620KM |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 34–420 Nm (25–310 ft.lbs) |
| Free Speed | 10000 rpm |
| Net Weight | 2.33 kg (5.1 lb) |
| Length | 180 mm (7.1 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 8.4 l/s (17.7 cfm) |
| Product Number | 8941276200 |
| Sound Pressure | 94 dB(A) |
| Vibration | 4.9 m/s² |
- Pin clutch mechanism in oil bath
- One-handed push button forward/reverse with 2 power setting positions in both sides
- Full power in reverse
- Double teasing trigger
- Curved handle
- Aluminum body with composite cover
- Through handle air exhaust and 360° air inlet swivel
