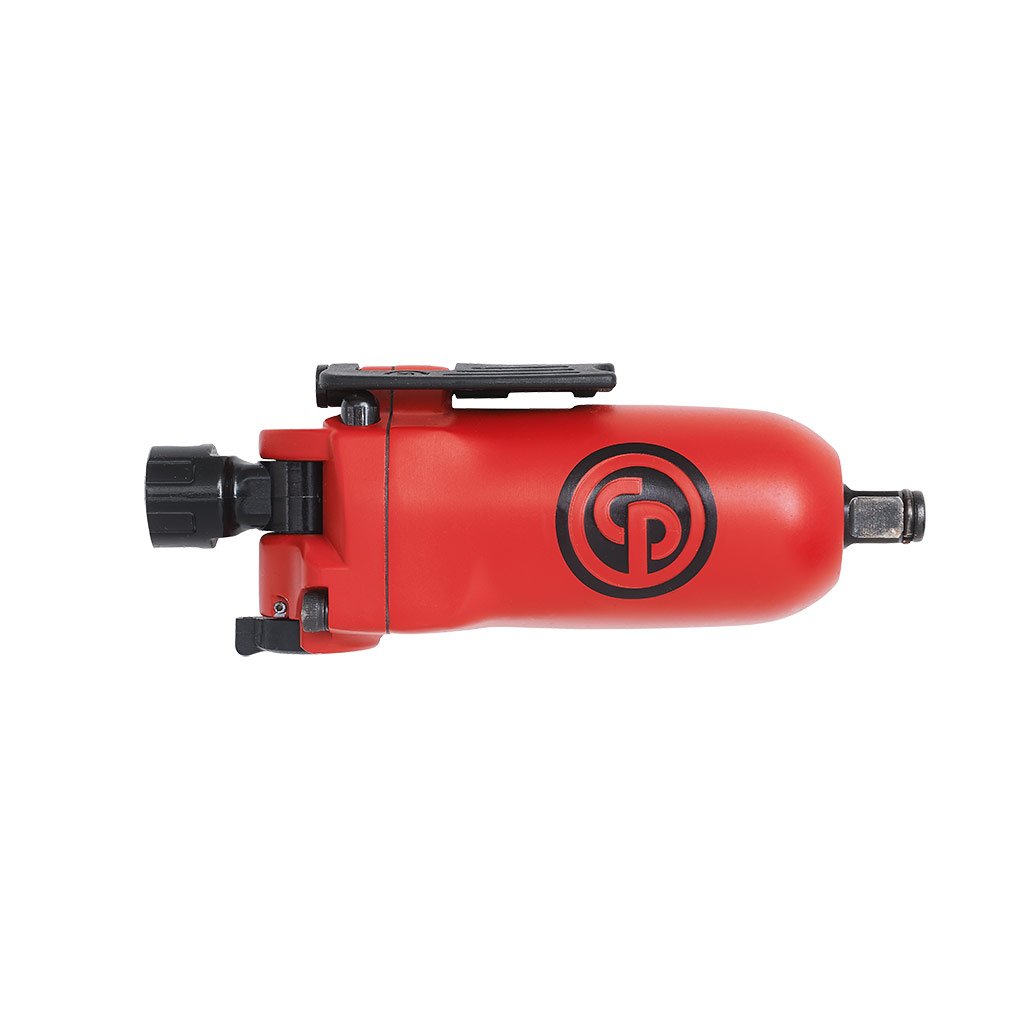

Chicago Pneumatic CP7721 | Butterfly Impact Wrench | 3/8" Drive, 9–80 Nm
With a 3/8" square drive and 9–80 Nm (6.6–59 ft.lbs) of working torque, the Chicago Pneumatic CP7721 is a butterfly impact wrench. Its compact, lightweight body is designed for easy operation.
- Compact and lightweight
- Easy to operate
- Powerful and durable
- Free speed 15000 rpm
- Net weight 0.53 kg (1.1 lb), length 140 mm (5 1/2 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 2.9 l/s (6 cfm)
- Specifications
- Features
| Part Number | CP7721 |
| Brand | Chicago Pneumatic |
| Square Drive | 3/8" |
| Working Torque Range | 9–80 Nm (6.6–59 ft.lbs) |
| Free Speed | 15000 rpm |
| Net Weight | 0.53 kg (1.1 lb) |
| Length | 140 mm (5 1/2 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 2.9 l/s (6 cfm) |
| Product Number | 8941077210 |
| Sound Pressure | 92 dB(A) |
| Vibration | 4 m/s² |
- 5.5 in. / 140 mm length, provides easier access to hard to reach places
- 1.16 lbs. / 0.53 Kg
- 80 ft.lbs. / 110 Nm in reverse
- Double rocking dog mechanism & Aluminum housing
- Power regulator in the back: 3 positions on both sides
- Butterfly shift for forward / reverse
- Built-in 180° air inlet swivel
- Ideal tool for transmission and engine repair works, body panels, oil pans, ignitions, motor cycle repair and vehicle seats
