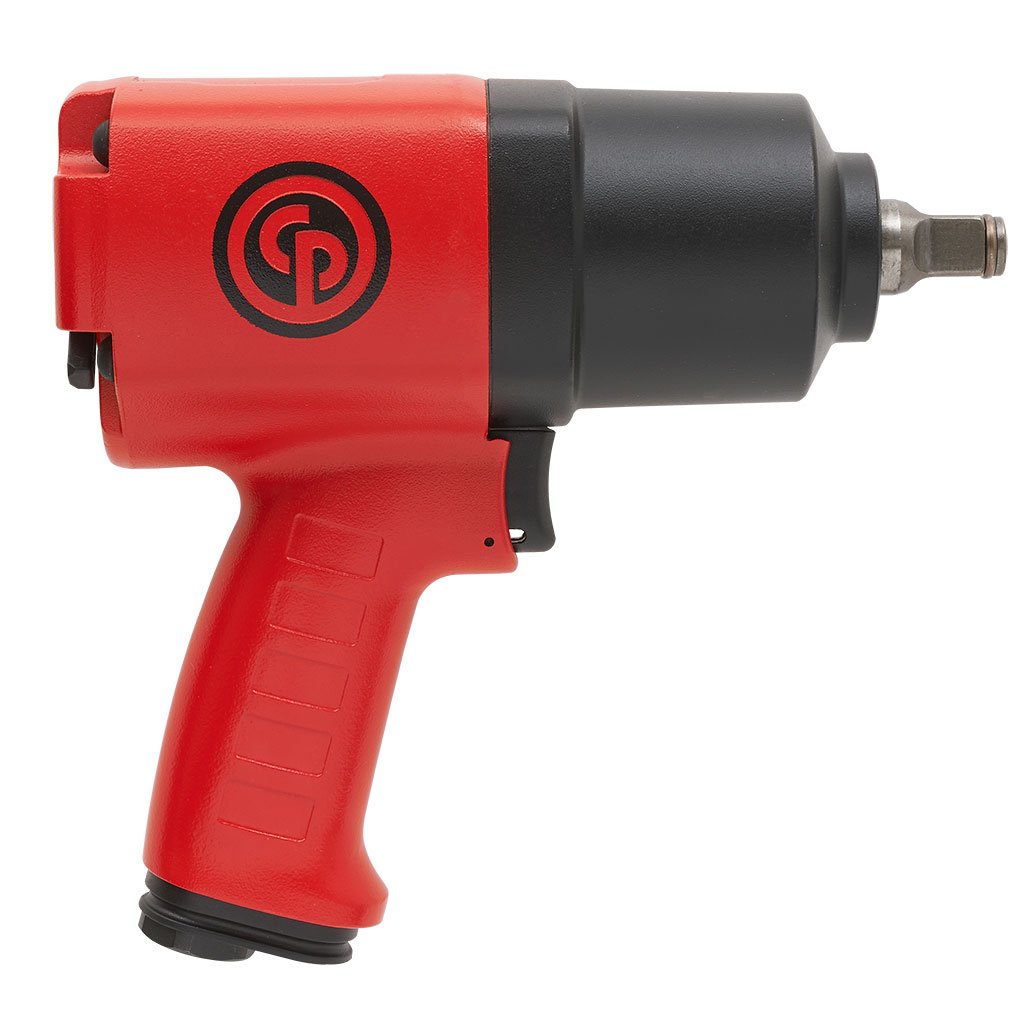

Chicago Pneumatic CP7736 | Impact Wrench | 1/2" Drive, 69–770 Nm
Rated for 69–770 Nm (51–570 ft.lbs), the CP7736 is a 1/2" impact wrench from Chicago Pneumatic. It is a powerful, durable and versatile tool.
- Comfortable and compact
- Versatile and easy to use
- Maximum reverse torque: 900 Nm (665 ft.lbs); free speed 10020 rpm
- Net weight 2.58 kg (5.7 lb), length 192 mm (7.6 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 8.3 l/s (18 cfm)
- Sound pressure 93.8 dB(A), vibration 9.5 m/s²
- Specifications
- Features
| Part Number | CP7736 |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 69–770 Nm (51–570 ft.lbs) |
| Maximum Torque (Reverse) | 900 Nm (665 ft.lbs) |
| Free Speed | 10020 rpm |
| Net Weight | 2.58 kg (5.7 lb) |
| Length | 192 mm (7.6 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 8.3 l/s (18 cfm) |
| Product Number | 8941077360 |
| Sound Pressure | 93.8 dB(A) |
| Vibration | 9.5 m/s² |
- 670 ft. lbs. - 900 Nm max in reverse
- Twin hammer mechanism and steel motor
- Well balanced minimizing wrist strain
- Ergonomic handle fits perfectly in the hand
- Suited for all maintenance applications
- Light vehicles tire changing operations
- Light vehicles mechanical repair
- MRO applications
- 3 power settings in forward and one in reverse
