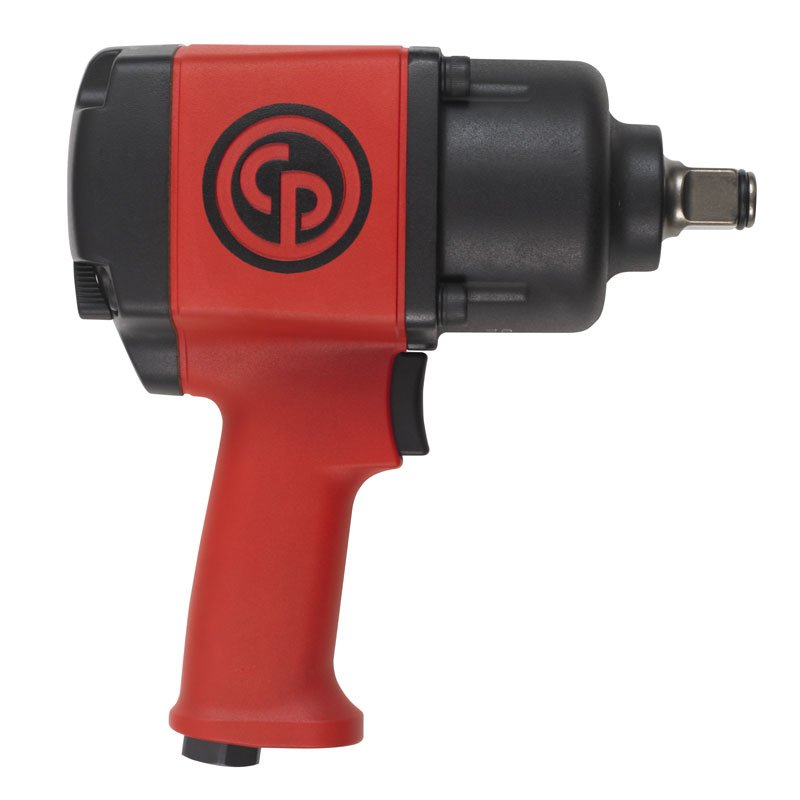

Chicago Pneumatic CP7763 3/4 Impact Wrenches 136-1288NM

Name: Chicago Pneumatic CP7763 3/4 Impact Wrenches 136-1288NM
Brand: ChicagoPneumatic
SKU: CP7763
Price: 3531.11 AED
Availability: InStock

Part Number : CP7763

Compact & Powerful. Ideal for General Maintenance applications. Powerful motor and durable clutch. Operator comfort.Range: 136 - 1288 Nm 100 - 950 ft.lbs

Availability: low stock

Specifications
Features

Actual air consumption	Metric: 14.2 l/s Imperial: 30 cfm
Air inlet thread size	3/8"
Average air consumption	Metric: 3.5 l/s Imperial: 7.5 cfm
Brand	Chicago Pneumatic
Free Speed	6300 rpm
Length	Metric: 229 mm Imperial: 8.8"
Maximum Torque (reverse)	Metric:1630 Nm Imperial: 1200 ft.lbs
Min. Hose Size	Metric: 13 mm Imperial: 1/2"
Model Number	CP7763
Net weight	Metric: 5.25 kg Imperial: 11.57 lb
Power/weight ratio	Metric: 310.5 Nm/kg Imperial: 103.7 ft.lb/lb
Product Number	8941077630
Range Imperial	100 - 950 ft.lbs
Range Metric	136 - 1288 Nm
Side to center	Metric: 45 mm Imperial: 1.8"
Sound Power	107 db(A)
Sound pressure	96 db(A)
Square Drive	3/4"
Vibration uncertainty (K)	4.2 m/s2
Vibration	10.4 m/s2

3/4" impact wrench with Ring retainer
Twin hammer clutch
High power: 1,200 ft.lbs (1,627 Nm)
Combined power regulator with forward/reverse
