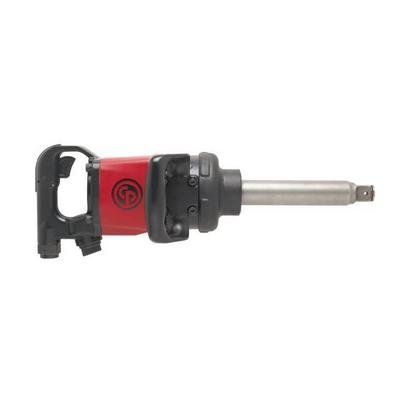

Chicago Pneumatic CP7782-6 | High-Torque Impact Wrench | 1" Drive, 500–2000 Nm
The Chicago Pneumatic CP7782-6 is a 1" high-torque impact wrench with a working torque range of 500–2000 Nm (370–1475 ft.lbs). It is designed for the toughest jobs on heavy vehicles.
- Economical, high-efficiency motor
- Durable reinforced clutch mechanism
- Maximum reverse torque of 2600 Nm (1920 ft.lbs); 5200 rpm free speed
- Net weight 11.6 kg (25.55 lb), length 520 mm (20.4 in); listed bolt size M32
- Air inlet 1/2", 13 mm (1/2 in) minimum hose; actual air use 19.2 l/s (40.7 cfm)
- 100 dB(A) sound pressure and 7.8 m/s² vibration
- Specifications
- Features
| Part Number | CP7782-6 |
| Brand | Chicago Pneumatic |
| Free Speed | 5200 rpm |
| Maximum Torque (Reverse) | 2600 Nm (1920 ft.lbs) |
| Length | 520 mm (20.4 in) |
| Air Inlet Thread | 1/2" |
| Working Torque Range | 500–2000 Nm (370–1475 ft.lbs) |
| Net Weight | 11.6 kg (25.55 lb) |
| Air Consumption (Actual) | 19.2 l/s (40.7 cfm) |
| Sound Pressure | 100 dB(A) |
| Square Drive | 1" |
| Min. Hose Size | 13 mm (1/2 in) |
| Product Number | 8941077826 |
| Bolt Size | M32 |
- 1" straight impact wrench with 6" extended anvil
- 1920 ft.lbs - 2600 Nm of maximum torque in reverse
- Pinless closed reinforced rocking dog impact mechanism
- Dual socket retention, hole and friction ring
- Ergonomic side handle
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
