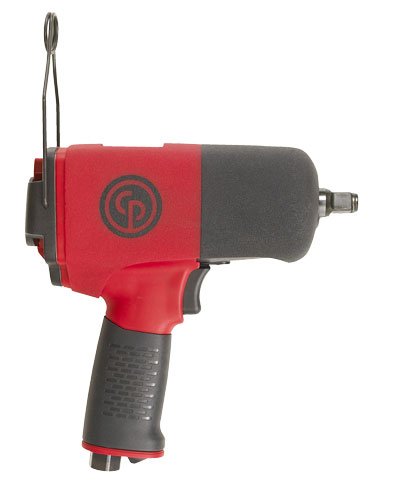

Chicago Pneumatic CP8252-R | Pneumatic Impact Wrench | 1/2 in drive, 150-750 Nm
Chicago Pneumatic built the CP8252-R as a 1/2 in square drive air impact wrench for 150-750 Nm (110-553 ft.lbs), running at 9,000 rpm free speed. Designed to be easy to control on precise assembly jobs, this multi-purpose tool for maintenance and production keeps noise and vibration low for the operator.
- Weighs 2 kg (4.4 lb) and runs at 9,000 rpm
- Air inlet thread 1/4 in with 10 mm minimum hose size; consumes 12 l/s (25.4 cfm) in use
- Rated sound pressure of 94 dB(A) and vibration of 8.8 m/s²
- 35 mm side to centre
- Ordering reference 6151590250
- Specifications
- Features
| Part Number | CP8252-R |
| Brand | Chicago Pneumatic |
| Drive | 1/2 in |
| Working torque range | 150-750 Nm (110-553 ft.lbs) |
| Max torque (reverse) | 950 Nm (700 ft.lbs) |
| Free speed | 9,000 rpm |
| Net weight | 2 kg (4.4 lb) |
| Air inlet thread | 1/4 in |
| Min. hose size | 10 mm (3/8 in) |
| Air consumption (actual) | 12 l/s (25.4 cfm) |
| Sound pressure level | 94 dB(A) |
| Vibration | 8.8 m/s² |
| Side to centre | 35 mm (1.38 in) |
| Manufacturer product number | 6151590250 |
- 1/2" impact with ring retainer
- Powerful & durable twin hammer clutch
- Composite body and aluminum clutch housing
- 3 power settings in forward & full power in reverse
- Protective cover & suspension bail
- Progressive trigger & Rubber grip
