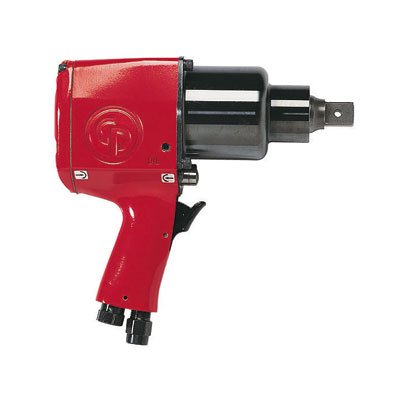

Chicago Pneumatic CP9561 3/4 Impact Wrenches 200-950NM

Name: Chicago Pneumatic CP9561 3/4 Impact Wrenches 200-950NM
Brand: ChicagoPneumatic
SKU: CP9561
Price: 3463.90 AED
Availability: InStock

Part Number : CP9561

The industrial grade of the Classic. Industrial Maintenance & Production applications. High performances, especially on hard joints. Operator comfort due to low vibrations and noise level. Great control with a multi-position regulator. Reliable pin clutch in oil bath & durable housing. Compact 3-part construction & easy to maintain.Range: 200 - 950 Nm 150 - 700 ft.lbs

Availability: low stock

Specifications
Features

Actual air consumption	Metric: 14.1 l/s Imperial: 30 cfm
Air inlet thread size	3/8"
Brand	Chicago Pneumatic
Free Speed	5500 rpm
Maximum Torque (reverse)	Metric: 1250 Nm Imperial: 885 ft.lbs
Model Number	CP9561
Net weight	Metric: 5.1 kg Imperial: 11.1 lb
Power/weight ratio	Metric: 245.1 Nm/kg Imperial: 79.7 ft.lb/lb
Product Number	6151909561
Range Imperial	150 - 700 ft.lbs
Range Metric	200 - 950 Nm
Side to center	Metric: 39 mm Imperial: 1.54"
Sound Power	111 db(A)
Sound pressure	100 db(A)
Square Drive	3/4"
Vibration uncertainty (K)	2.4 m/s2
Vibration	7.7 m/s2
Working Torque Range (fwd)	Metric: 200 - 950 Nm Imperial: 150 - 700 ft.lbs
