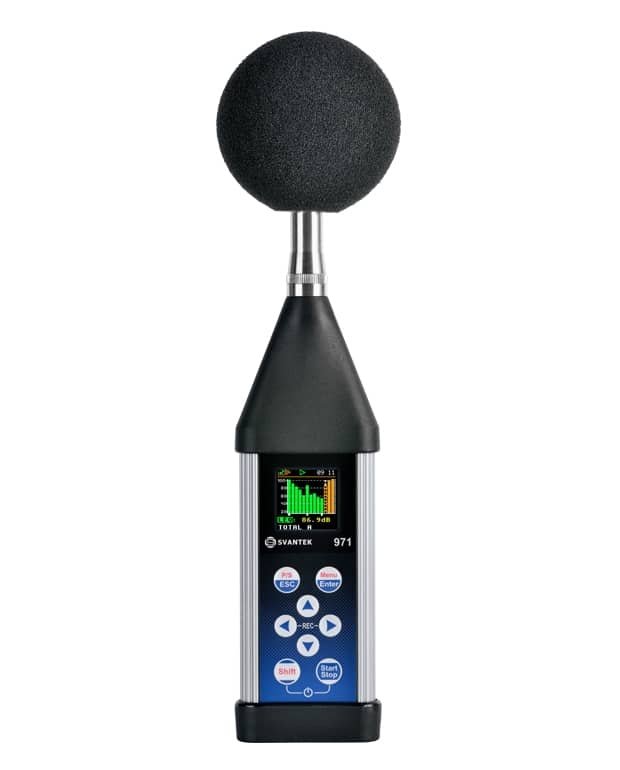

Class 1 Sound Level Meter | Linear Operating Range 25 dBA RMS to 140 dBA Peak
An exceptionally compact Class 1 instrument with options for 1/1 and 1/3 octave analysis is the SVAN971 Sound Level Meter. A SLM of this size has never before benefited from state-of-the-art technology thanks to the instrument.
Configuration and measurement are now more straightforward than ever thanks to the user interface. For individuals who don't have the time to fiddle with measurement settings, the SVAN 971 offers a start/stop operational mode that is incredibly straightforward.
The SVAN 971 is an excellent option thanks to its innovation for a variety of uses, including industrial hygiene noise, short-term environmental noise, acoustic consultants, technical engineers, and general noise measurements.
The SVAN971 Sound Level Meter offers broadband results with all necessary weighting filters in addition to band filters for the first and third octaves.
- Specifications
- Downloads
| Dimensions | 232.5 mm x 56 x 20 mm (including microphone and preamplifier) |
| Display | Colour 96 x 96 pixels OLED type |
| Frequency (Hz) | 10 Hz to 20 kHz |
| Memory Capacity | MicroSD card 16 GB (removable & upgradeable up to 128 GB) |
| Noise level | Less than 15 dBA RMS |
| Power Supply | Four AAA alkaline or rechargeable NiMH batteries (not included) |
| Range | Linear Operating Range 25 dBA RMS ƒ· 140 dBA Peak |
| Weight | Approx. 225 grams with batteries (Approx. 8.20 oz) |
