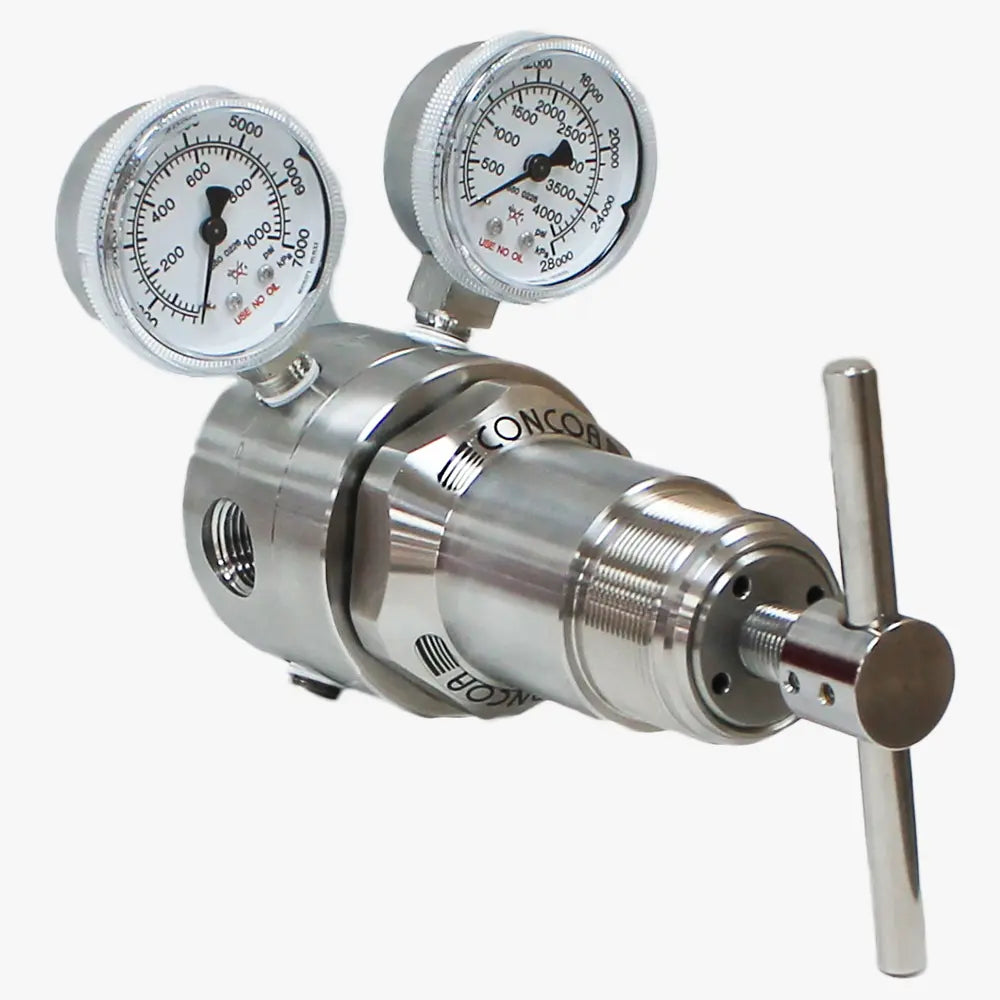

CONCOA 67S Series | Pressure Regulator | 316L Stainless Steel, Up to 750 PSIG Delivery
Part Number : CONCOA-67S-SERIES-REGULATOR
The CONCOA 67S Series is a 316L stainless steel barstock regulator whose low static design gives steady, reliable pressure control, with delivery options reaching 750 PSIG (51 BAR). The series is configured to order and has no single part number: the seat material (FKM or EPDM), the primary port size (1/2 in or 3/4 in FNPT) and the delivery pressure option are selected when ordering, giving room for customisation and system integration.
Key features
- Front and rear panel mounting eases installation
- 40-micron 316L stainless steel mesh internal filter
- 2 in (50 mm) stainless steel gauges
- 3000 PSIG (210 BAR) maximum inlet on the bare body, Cv 2.3
- -40°F to 140°F (-40°C to 60°C) temperature range, weight 7.5 lbs (3.4 kg)
- PED 2014/68/EU, ANSI/ASME B40.1 and CRN OH5216.5 conformance
For pricing, please contact our experts.
