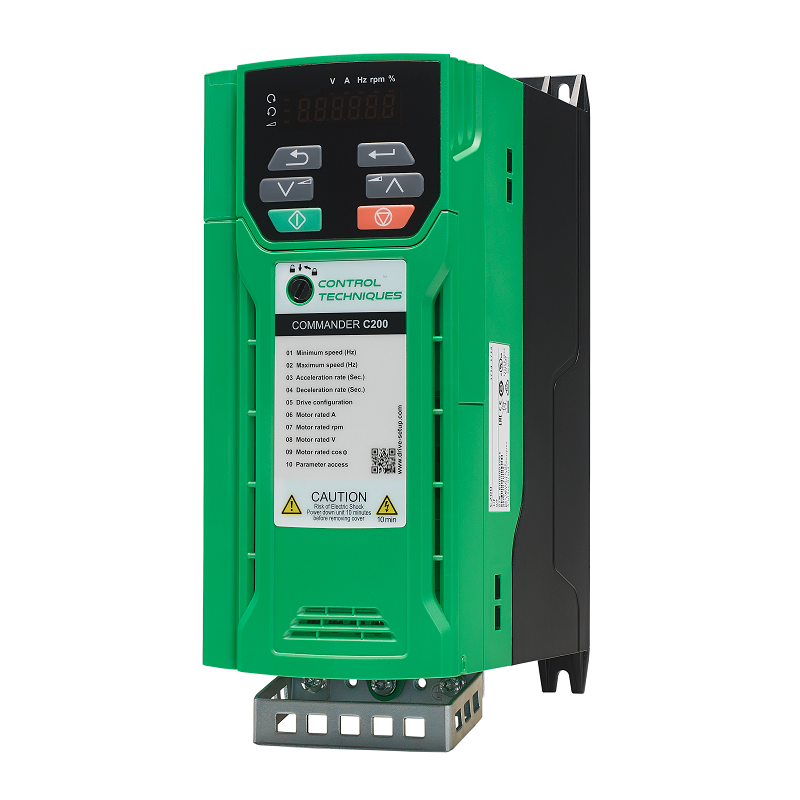

Control Techniques C200-02200056A | Commander C200 Variable Speed Drive | 1.1 kW, 1/3-Phase 200/240 V
C200-02200056A from Control Techniques is a 1.1 kW Commander C200 AC drive for single- or three-phase 200/240 V AC installations, supplying up to 5.6 A continuously to the motor. The Commander C series is positioned as a simple, compact controller, and this 1.1 kW model needs four parameters for a basic start.
- 1.1 kW rating (1.5 hp) for 1/3-phase 200/240 V AC
- 5.6 A maximum continuous current
- 0.5–590 Hz output frequency range on the 1.1 kW model
- Housing: IP21 enclosure, 183 x 75 x 150 mm, 1 kg
- Overload capacity of up to 180% on this 1.1 kW drive
- Plug-in options and an onboard PLC on C200-02200056A
- Specifications
- Features
- Downloads
| Part Number | C200-02200056A |
| Brand | Control Techniques |
| Series | Commander C200 |
| Max Continuous Current | 5.6 A |
| Supply | Single- or three-phase 200/240 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.5–590 Hz |
| Enclosure | IP21 |
| Dimensions | 183 x 75 x 150 mm (7.1 x 3.0 x 5.12 in) |
| Weight | 1 kg (2.2 lb) |
| Motor Shaft Power | 1.1 kW / 1.5 hp |
| Overload | Up to 180% |
| Commissioning | 4 parameters to start |
- Adaptable to your application
- Integrated functional safety
- On-board PLC
- Compact design
- Super quick start-up
- Flexible connectivity
- Worldwide availability and outstanding service
