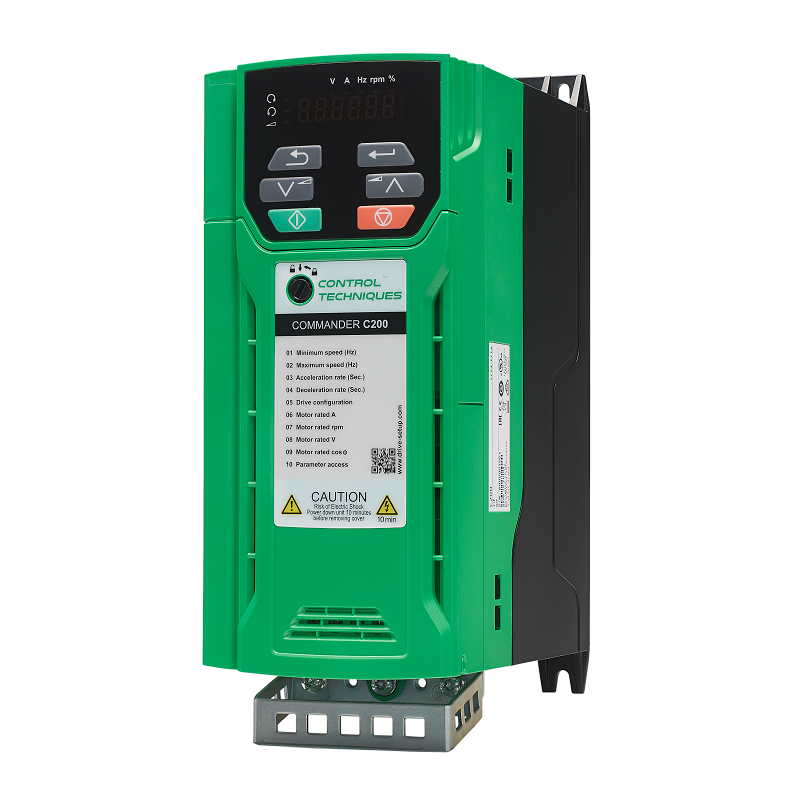

Control Techniques C200-07200750A | Commander C200 Variable Speed Drive | 18.5 kW, 3-Phase 200/240 V
The Control Techniques C200-07200750A is a Commander C200 variable speed drive rated 18.5 kW (25 hp), delivering up to 75 A of continuous output current from a three-phase 200/240 V AC supply. Commander C drives are intended as compact AC motor speed controllers, and getting this 18.5 kW unit running takes only four parameters.
- 18.5 kW / 25 hp on a 3-phase 200/240 V AC supply
- Maximum continuous output current: 75 A
- 0.5–590 Hz output frequency range on the 18.5 kW model
- IP21 enclosure, 508 x 270 x 280 mm, 45 kg
- Up to 180% overload for high-torque or heavy starting at 18.5 kW
- Onboard PLC plus plug-in options for advanced control on the C200-07200750A
- Specifications
- Features
- Downloads
| Part Number | C200-07200750A |
| Brand | Control Techniques |
| Series | Commander C200 |
| Max Continuous Current | 75 A |
| Supply | Three-phase 200/240 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.5–590 Hz |
| Enclosure | IP21 |
| Dimensions | 508 x 270 x 280 mm (20 x 10.6 x 11 in) |
| Weight | 45 kg (99.2 lb) |
| Motor Shaft Power | 18.5 kW / 25 hp |
| Overload | Up to 180% |
| Commissioning | 4 parameters to start |
- Adaptable to your application
- Integrated functional safety
- On-board PLC
- Compact design
- Super quick start-up
- Flexible connectivity
- Worldwide availability and outstanding service
