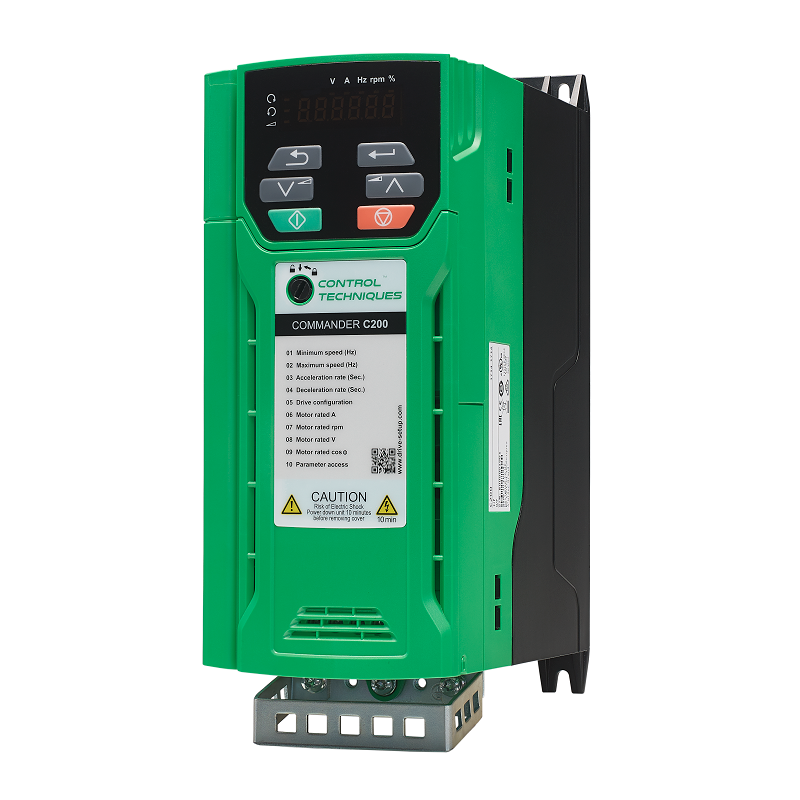

Control Techniques C200-08201320A | Commander C200 Variable Speed Drive | 37 kW, 3-Phase 200/240 V
Rated at 37 kW / 50 hp, Commander C200 drive C200-08201320A runs from a three-phase 200/240 V AC supply and provides a maximum continuous current of 132 A. The Commander C series is positioned as a simple, compact controller, and this 37 kW model needs four parameters for a basic start.
- 37 kW / 50 hp on a 3-phase 200/240 V AC supply
- Up to 132 A continuous output to the motor
- 0.5–590 Hz output frequency range on the 37 kW model
- IP21 enclosure / 753 x 310 x 290 mm / 50 kg
- 180% overload headroom for heavy starts on this 37 kW unit
- Onboard PLC plus plug-in options for advanced control on the C200-08201320A
- Specifications
- Features
- Downloads
| Part Number | C200-08201320A |
| Brand | Control Techniques |
| Series | Commander C200 |
| Max Continuous Current | 132 A |
| Supply | Three-phase 200/240 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.5–590 Hz |
| Enclosure | IP21 |
| Dimensions | 753 x 310 x 290 mm (29.6 x 12.2 x 11.4 in) |
| Weight | 50 kg (110.2 lb) |
| Motor Shaft Power | 37 kW / 50 hp |
| Overload | Up to 180% |
| Commissioning | 4 parameters to start |
- Adaptable to your application
- Integrated functional safety
- On-board PLC
- Compact design
- Super quick start-up
- Flexible connectivity
- Worldwide availability and outstanding service
