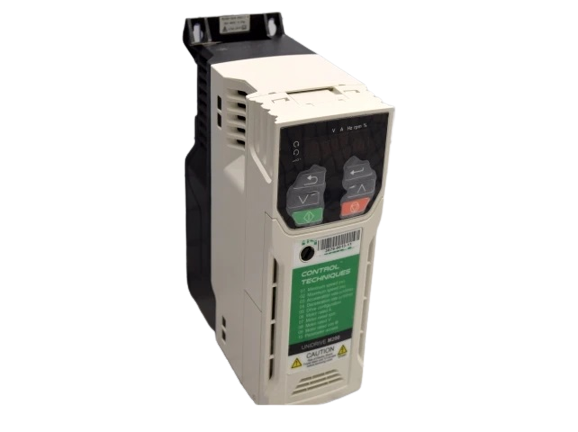

Control Techniques M200-024-00032 | Variable Speed Drive | 1.1 kW, 3.2 A, 3-Phase 480 V

Name: Control Techniques M200-024-00032 | Variable Speed Drive | 1.1 kW, 3.2 A, 3-Phase 480 V
Brand: Control Techniques
SKU: M200-024-00032
Availability: InStock

Part Number : M200-024-00032

The M200-024-00032 is a 1.1 kW Unidrive M200 series variable speed drive from Control Techniques, rated 3.2 A on a three-phase 480 V AC supply. Designed for panel-mounted speed control of three-phase induction motors, it suits compact machines and general industrial duty.

1.1 kW / 1.5 hp at 3.2 A
Three-phase supply range 342 to 528 V AC
Maximum output frequency of 550 Hz
Measures 5.9 x 3 x 8.05 in; gross weight 3.16 lb

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	M200-024-00032
Brand	Control Techniques
Series (as listed)	Unidrive M200
Power	1.1 kW / 1.5 hp
Rated Current	3.2 A
Supply	Three-phase 480 V AC
Input Voltage Range	342 to 528 V AC
Max Output Frequency	550 Hz
Dimensions	5.9 x 3 x 8.05 inches
Gross Weight	3.16 lbs

Maximize productivity with performance open-loop motor control

Install and configure quickly and easily

Transfer parameters without mains power

Minimize downtime with robust and reliable design

Reduce application size and cost

Easily upgrade Commander SK designs and installations
