Control Techniques M400-05400300A-15HD / 15NDkw, Three Phase,380-480V AC, Unidrive M400 Variable Speed Drive
Genuine Control Techniques M400-05400300A Unidrive M400 Variable Speed Drive, in stock at General Tech Services LLC, UAE. Motor Shaft Power: 15 (HD) / 15 (ND) kW; Voltage: 380-480VAC; Phase: Three-phase. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. M400-05400300A | 15 (HD) / 15 (ND) kW

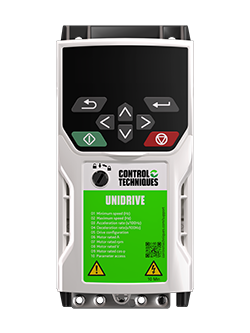

Control Techniques' Unidrive M400 variable frequency AC drive (VFD) minimises downtime with an optional plain-text, multi-language backlit LCD keypad for rapid setup and clear diagnostics. Its integrated PLC executes a substantial range of sequencing and logic programs, while the drive offers an impressive onboard I/O count with dual Safe Torque Off (STO) inputs, plus a single SI option slot for fieldbus, Ethernet or expanded I/O. An AI option slot supports parameter cloning, 24V backup and Modbus RTU, while an optional CI-485-ADAPTOR adds further Modbus RTU communications in place of the keypad.
Key Benefits
- Optional multi-language backlit LCD keypad speeds up setup and diagnostics
- Dual Safe Torque Off (STO) inputs built in as standard
- Wide fieldbus choice: PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet, EtherCAT and Ethernet
- Integrated PLC for onboard sequencing and logic without extra hardware
- Compact IP21 panel-mount housing for space-constrained enclosures
Who This Product Is Best For
- Panel builders who want a compact, IP21 panel-mount drive with a multi-language diagnostic keypad
- OEMs needing dual Safe Torque Off (STO) as standard for machine safety compliance
- Integrators who want a choice of PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet, EtherCAT or Ethernet fieldbus
How to Specify & Commission It
- Confirm the M400-05400300A nameplate rating matches your motor's voltage, current and power requirements.
- Mount the drive in a suitably ventilated panel or enclosure per the manufacturer's installation guide.
- Wire the supply, motor and control/communication terminals, then power up and configure via keypad, app or PC tool as applicable.
- Commission the drive against your motor and process, then verify protection settings before handing the system over.
Frequently Asked Questions
What makes the M400-05400300A easier to commission than a basic drive?
An optional plain-text, multi-language backlit LCD keypad gives clear setup guidance and diagnostic help, minimising downtime during commissioning and fault-finding.
Does the M400 include safety functions as standard?
Yes, dual Safe Torque Off (STO) inputs are built in.
Which fieldbus protocols does the M400 support?
PROFINET, PROFIBUS, Modbus, CANopen, DeviceNet, EtherCAT and Ethernet, via the SI option slot.
Can the M400 run PLC logic on the drive itself?
Yes, it has an integrated PLC that can execute a substantial range of sequencing and logic programs, reducing the need for a separate controller.
What's the ambient temperature range for this drive?
-20 C to 40 C.
Should I choose the M400-05400300A or the M400-05400270A?
Compare the headline specifications above against your motor's nameplate. The M400-05400270A differs in rated current/power from the M400-05400300A; contact our team and we'll confirm the exact match for your application.
