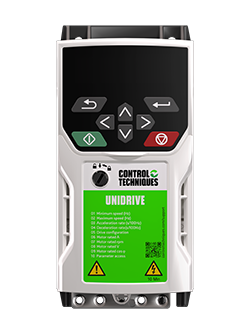

Control Techniques M400-06400420A | Unidrive M400 AC Drive | 18.5 kW HD / 22 kW ND, 48 A, 3-Phase 380–480 V
Part Number : M400-06400420A
The Control Techniques M400-06400420A is a Unidrive M400 variable frequency AC drive rated 18.5 kW HD / 22 kW ND (25 hp), with 48 A maximum continuous current on a three-phase 380–480 V AC supply. Machine logic can run on the M400-06400420A itself via its integrated PLC, and two Safe Torque Off inputs are built in.
- Plain-text, multi-language LCD keypad available as an option for the M400-06400420A
- Single SI slot on this 18.5/22 kW drive accepts fieldbus, Ethernet or I/O modules
- AI option slot for parameter cloning, 24 V backup and Modbus RTU at 18.5/22 kW
- Size and weight: 391 x 210 x 227 mm, 14 kg
- Ambient range -20 °C to 40 °C and 0–550 Hz output for the 18.5/22 kW rating
