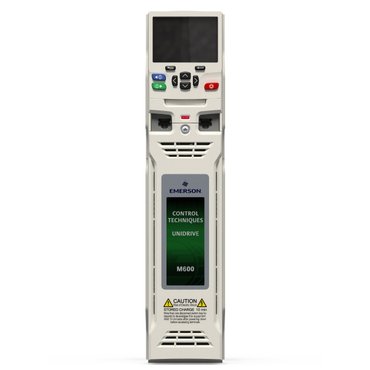

Control Techniques M600-034-00100A-5.5kw, Three Phase,380-480V AC, Unidrive M600 Variable Speed Drive

Name: Control Techniques M600-034-00100A-5.5kw, Three Phase,380-480V AC, Unidrive M600 Variable Speed Drive
Brand: Control Techniques
SKU: M600-034-00100A
Availability: InStock

Part Number : M600-034-00100A

Control Techniques’ Unidrive M600 variable speed AC drive (VFD) delivers increased machine performance with sensorless induction and sensorless permanent magnet motor control for dynamic and efficient machine operation. An optional encoder port can be used for precise closed loop velocity applications and digital lock/frequency following for induction motors.

Additional I/O, encoder feedback options, industry standard fieldbuses and Ethernet communications maximize system connectivity and flexibilityUnidrive

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Brand	Control Techniques
Dimensions (inch)	15.0 x 3.3 x 7.9
Dimensions (mm)	382 x 83 x 200
Enclosure	IP21
Frequency (Hz)	45 - 66 Hz
Max Continuous Current (A)	18.5
Motor Shaft Power (hp)	7.5 hp
Motor Shaft Power (kW)	5.5 kW
Output Frequency Range (Hz)	0 - 550Hz
Supply Phase	3
Voltage	380 - 480 Vac
Weight lb (Kg)	4.5 (9.9)

High bandwidth motor control algorithm with 62.5µs current loop update rates for accurate motor control.
200% motor overload suitable for heavy industrial machinery applications.
Unidrive M600 incorporates an onboard PLC which can execute Machine Control Studio programs for logic control, sequencing, speed following and digital lock - removing the need for additional PLCs.
Complete IEC 61131-3 programming environment. Structured text (ST), function block (FBD), sequential function chart (SFC), ladder diagram (LD), instruction list (IL), and continuous function chart (CFC)
Fit up to three SI modules to add safe motion, speed feedback, additional I/O, fieldbus, and Ethernet communications.Control connections: 3 x Analog inputs, 4 x Digital inputs, 2 x Analog outputs, 3 x Digital I/O, 1 x Digital output, 1 x Relay
Advanced Rotor Flux Control (RFC) algorithm gives maximum stability and control of induction and permanent magnet motors.
1 hp – 4,200 hp (0.75 kW – 2.8 MW) NormalDuty
1.5 hp – 450 hp (1 kW – 2.8 MW) Heavy Duty 208 - 240 V | 380 - 480 V | 575 V | 690 V
Onboard communications : Modbus RTUvia dual RS485 ports
