DeFelsko PRBDPMD | PosiTector DPM D Probe Only | 1/2 in NPT Cabled Probe, Gage Body Required

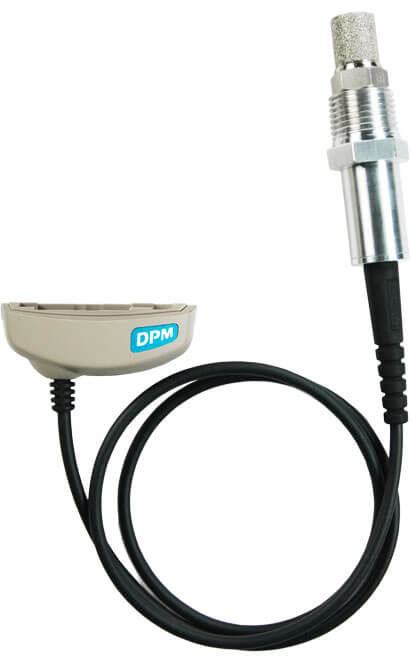

The DeFelsko PRBDPMD is the PosiTector DPM D probe (cabled probe with 1/2 in npt threads) sold without a gage body. Connected to a PosiTector Standard or Advanced body, it measures dew point, relative humidity and air temperature. It lets existing PosiTector owners add dew point inside tanks and pipes to their inspection kit.
Key features
- Probe only – a PosiTector gage body is required
- Measures dew point, relative humidity and air temperature
- 1/2 in NPT threads for insertion into tanks and pipes (max 0.69 MPa / 100 psi)
- Sintered aluminium housing protects the sensors
- Wet bulb temperature shown on Advanced (3) bodies only
- Specifications
- Downloads
| Part Number | PRBDPMD |
| Brand | DeFelsko |
| Probe Model | PosiTector DPM D |
| Probe Style | Cabled probe with 1/2 in NPT threads |
| Supply | Probe only (gage body required) |
| Measured Parameters | Dew point, relative humidity and air temperature |
| Air Temperature | -40 to 80 °C, ±0.5 °C |
| Relative Humidity | 0–100%, ±3% |
| Dew Point | -60 to 80 °C, ±3 °C (RH dependent) |
| Connection | 1/2 in NPT, max 0.69 MPa (100 psi) |
| Standards | ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, US Navy NSI 009-32 |
