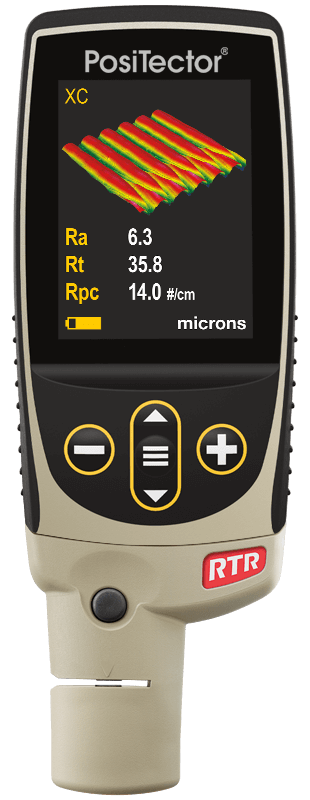

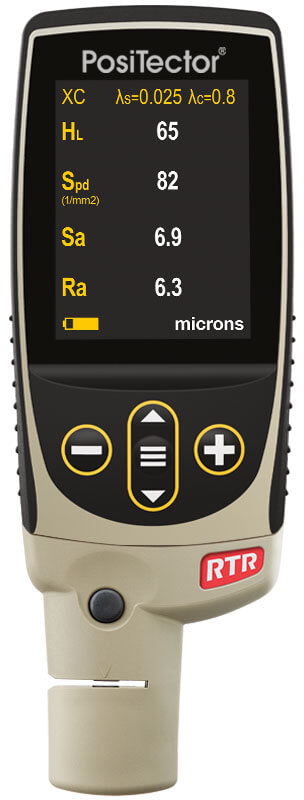

DeFelsko RTR3D1 | PosiTector RTR 3D Replica Tape Reader, Standard | 2D/3D Profile Parameters
Part Number : RTR3D1
The DeFelsko RTR3D1 pairs the PosiTector RTR 3D replica tape reader with the Standard gage body. Insert a burnished Testex Press-O-Film replica and it reports peak height (H) together with 2D and 3D parameters within seconds, for field or laboratory checks on flat, curved or irregular surfaces.
Key features
- 2D parameters: Ra, Rq, Rz, Rp, Rv, Rt, Rpc
- 3D parameters: H, Sa, Sq, Sz, Sp, Sv, Spd
- Range: H 20 to 115 µm, Rt 10 to 115 µm; accuracy (H) ±5 µm
- Short and long cutoff filters and discard lengths can be applied
- Conforms to ASME B46, ASTM D4417, ISO 8503-5 and SSPC-PA 17
- Standard gage body stores 1,000 readings per probe
For pricing, please contact our experts.
