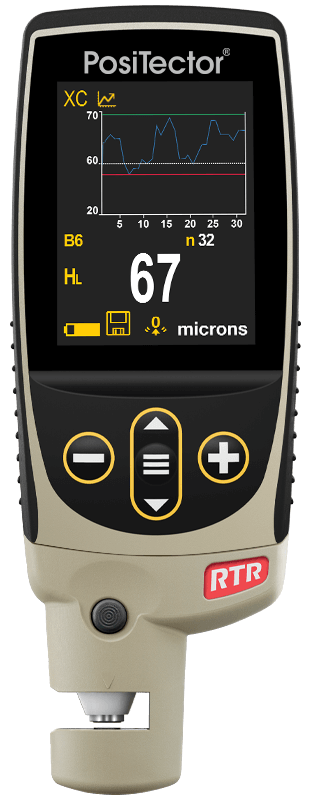

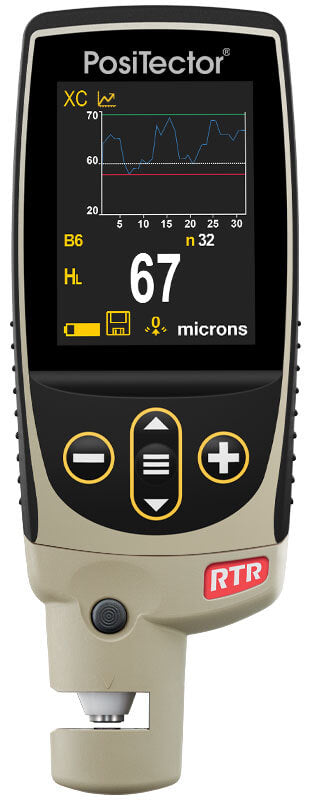

DeFelsko RTRH3 | PosiTector RTR H Replica Tape Reader, Advanced | 20 – 115 µm Peak Height
Part Number : RTRH3
The DeFelsko RTRH3 combines the PosiTector RTR H replica tape reader with the Advanced gage body. It measures surface profile peak height (HL) from burnished Testex Press-O-Film replica tape on blasted steel and textured coatings, giving blasting contractors and coating inspectors an electronic alternative to a spring micrometer.
Key features
- Peak height (HL) range 20 to 115 µm (0.8 to 4.5 mils)
- Accuracy ±5 µm (±0.2 mils), resolution 1 µm
- Select the tape grade to apply the conversion factor and subtract the 50 µm backing automatically
- Reads Coarse Minus, Coarse, X-Coarse and X-Coarse Plus replica tape
- Conforms to ASTM D4417, ISO 8503-5, NACE SP0287 and SSPC-PA 17
- Advanced gage body stores 250,000 readings in up to 1,000 batches and adds WiFi and Bluetooth
For pricing, please contact our experts.
