DeFelsko STDS1 | S1 Certified Coated Metal Plates | Steel, 0 to 1500 µm
Part Number : STDS1

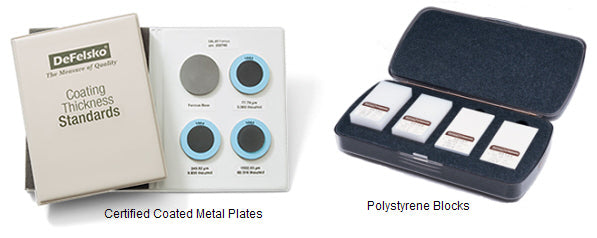

The DeFelsko STDS1 is the S1 set of certified coated metal plates, four epoxy-on-steel plates covering zero up to 1500 µm (60 mils). It is matched to ferrous coating thickness gauges such as PosiTector 6000 F, FS, FRS, FN, FNS, FNRS, FXS and FNDS probes, plus PosiTest F and FM, and lets QC staff verify gauge accuracy and operation in the lab, in the field or on the factory floor.
Key features
- Plate values (approx.): 0, 75 µm (3 mils), 250 µm (10 mils) and 1500 µm (60 mils)
- Coating/substrate: epoxy on steel (ferrous)
- Accuracy: ±0.43 µm (±0.017 mil)
- Four plates in a protective binder; plate diameter 38 mm (1.5 in), measurement area 25 mm (1 in)
- Individually serialised with a Certificate of Calibration traceable to NIST or PTB
- Labelled in metric and imperial units
For pricing, please contact our experts.
