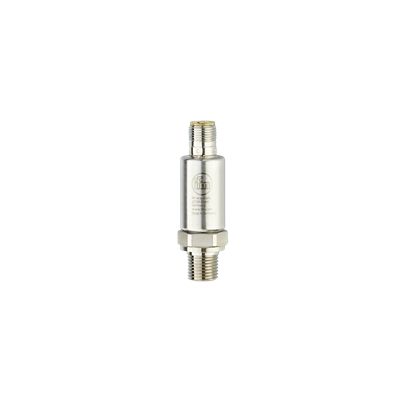

ifm PV7703, PV Series Pressure Switch, -0.1MPa Min, 2.5MPa Max, PNP/NPN Output, Relative, Vaccum Reading

Part Number : PV7703

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic pressure switch is a versatile device designed for precision measurement and control in industrial applications. Utilizing IO-Link technology, it provides reliable performance for both liquids and gases across a wide measuring range of -0.1 to 2.5 MPa. With a robust metallic thin film measuring element, the switch boasts a high standard of durability, especially suited for demanding environments. Its user-friendly parameters allow for easy configuration of switching functions, facilitating seamless integration into automation systems. This device exemplifies innovation and reliability, aiming to enhance productivity and process efficiency.

Two digital outputs allow for flexible signal configuration
IO-Link communication enables remote monitoring and parameter adjustment
Shock and vibration resistant, suitable for harsh operational conditions
Wide ambient and storage temperature range ensures reliable performance

Brand	ifm
Pressure Reading Type	Relative, Vaccum
Minimum Pressure Reading	-0.1MPa
Maximum Pressure Reading	2.5MPa
Accuracy	± 0.5
Output Type	PNP/NPN
Series	PV

ifm PV7703, PV Series Pressure Switch, -0.1MPa Min, 2.5MPa Max, PNP/NPN Output, Relative, Vaccum Reading
