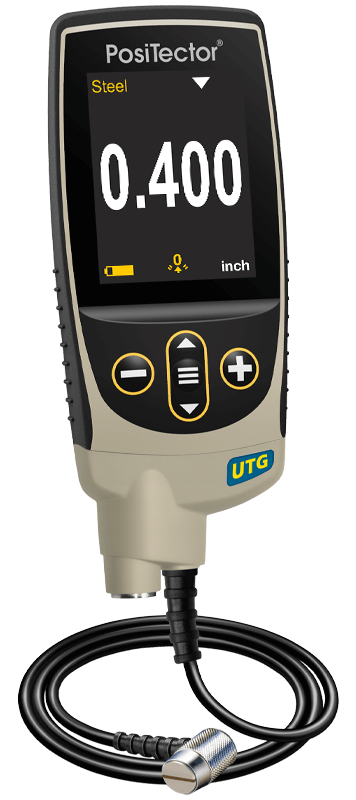

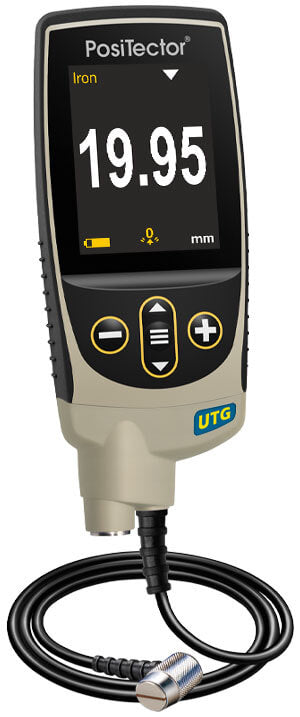

DeFelsko UTGCLF3 | PosiTector UTG CLF Ultrasonic Thickness Gauge, Advanced
Part Number : UTGCLF3
The DeFelsko UTGCLF3 is the PosiTector UTG CLF ultrasonic wall thickness gauge on the Advanced gage body, using a 2.25 MHz dual element transducer (cabled probe). It is aimed at thick or attenuative materials such as cast iron, cast aluminium and zinc, letting inspectors measure wall thickness from one side of a part or structure. The Advanced body adds A-Scan and B-Scan displays.
Key features
- Probe type: 2.25 MHz dual element
- Thru-paint capability: No
- Measuring Range: 2.00 – 125.00 mm (0.080 – 5.000 in)
- Accuracy ±0.03 mm (±0.001 in)
- Pre-programmed sound velocities for common materials; Min Scan mode records min/max thickness
- Advanced gage body stores 250,000 readings in up to 1,000 batches and adds WiFi and Bluetooth
For pricing, please contact our experts.
